Conquer the Gnar. Chunky rock gardens, gnarly roots, and steep, technical climbs—the Giant Trance X 29 is for riders who live for the hardest parts of the trail. With longer suspension travel and flip chip-adjustable geometry, this aluminum trail slayer is built to charge through aggressive singletrack and descend with total confidence.
Maestro Suspension Technology: Four strategically placed pivots and two linkages work together to create an active, efficient, and independent suspension system for supreme control.
Flip Chip - Maestro: Easily adjust headtube and seat tube angles, as well as bottom bracket height, to match your riding style and terrain with the flip chip on the upper rocker arm.
Frameset
Frame:
ALUXX SL-Grade Aluminum, 135mm Maestro, flip chip
Fork:

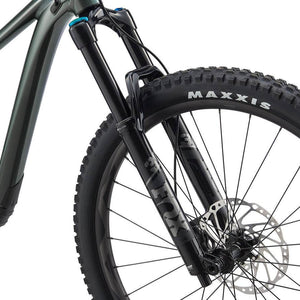

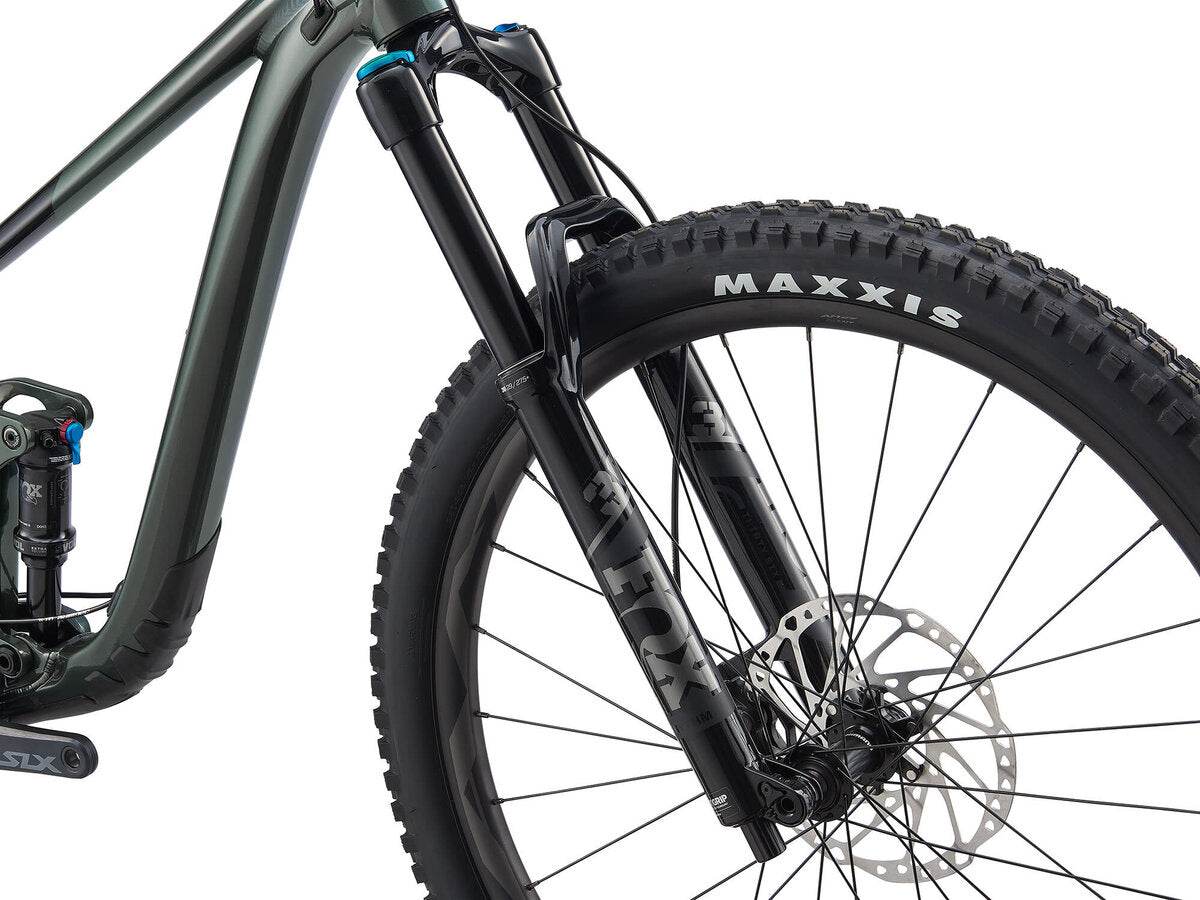

Fox 36 Float Rhythm, 150mm, GRIP damper, Boost 15x110 QR, 44mm offset
Rear Shock:
Fox Float DPS Performance, 185/55, custom tuned
Headset:
Giant Overdrive 1 1/8"–1 1/2" tapered
Drivetrain
Rear Derailleur:
Shimano SLX, 12-speed
Shifters:
Shimano SLX, 1x12
Crank:
Shimano MT510, 30T, 170mm
Cassette:
Shimano SLX, 10x51
Chain:
KMC X-12, 12-speed
Bottom Bracket:
Shimano, press fit
Brakes
Brakes:
Shimano MT520, hydraulic disc
Wheels
Rims:
Giant AM 29, alloy, tubeless ready
Hubs:
Shimano, [F] 110x15 / [R] 148x12 sealed bearing
Front Tire:
Maxxis Minion DHF 29x2.5", 3C, EXO, TR, tubeless
Rear Tire:
Maxxis Dissector 29x2.4", 3C, EXO, TR, tubeless
Components
Handlebar:
Giant Contact TR35, 780x35mm, 20mm rise
Stem:
Giant Contact SL 35, 50mm
Seatpost:
Giant Contact Switch dropper, 170mm travel, 30.9 x 450mm
Note: Specifications are subject to change without notice based on component availability.
Size |
Height Range |
S |
|
M |
|
L |
|
XL |
|
