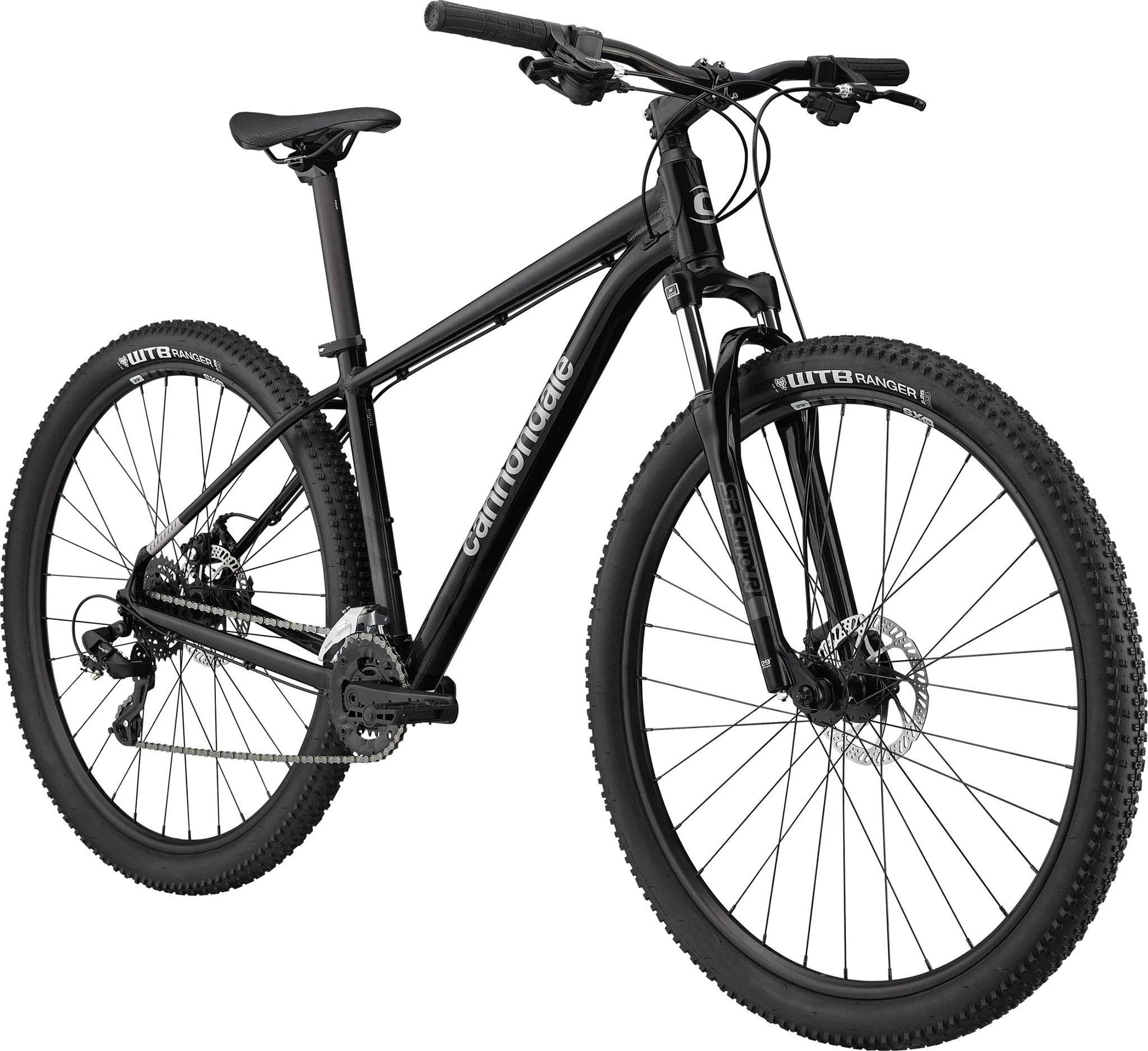

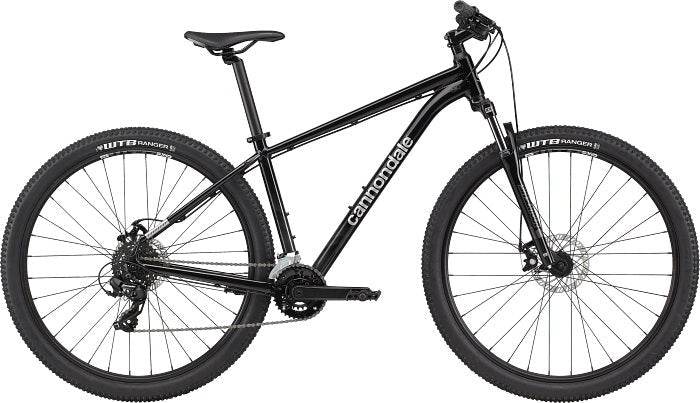

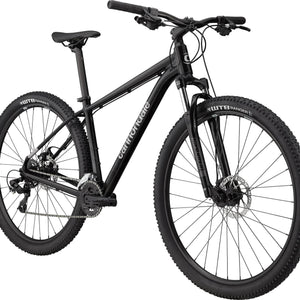

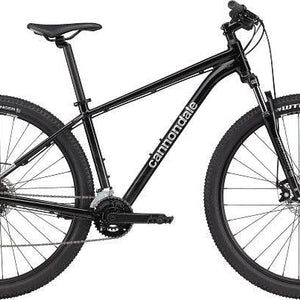

Your Ultimate Trail Companion. Experience the thrill of the trail like never before with the Cannondale Trail 8. Designed to be your ultimate companion on every off-road adventure, this mountain bike is built to elevate your game and ignite your passion for exploration. From rugged trails to gravel roads, this bike thrives on versatility, offering performance and reliability in every ride.
SAVE Micro-Suspension: Delivers a smoother, more controlled ride thanks to strategically engineered flex zones built into the frame's rear triangle.
Frameset

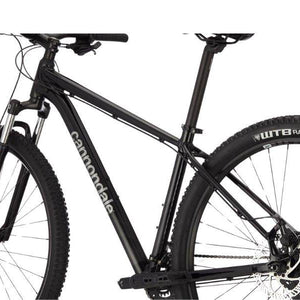

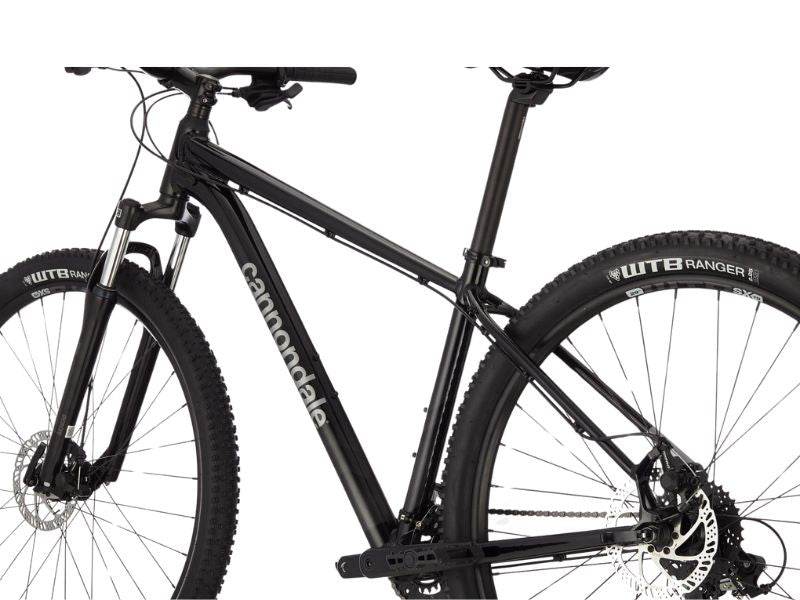

Frame:
SmartForm C3 Alloy
Fork:
SR Suntour M3030, 75mm, coil, 46mm offset (29")
Headset:
Semi-Integrated, 1-1/8"
Drivetrain

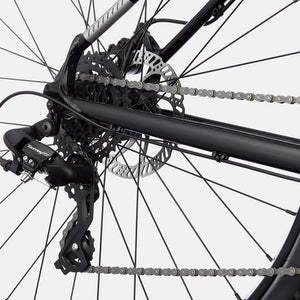

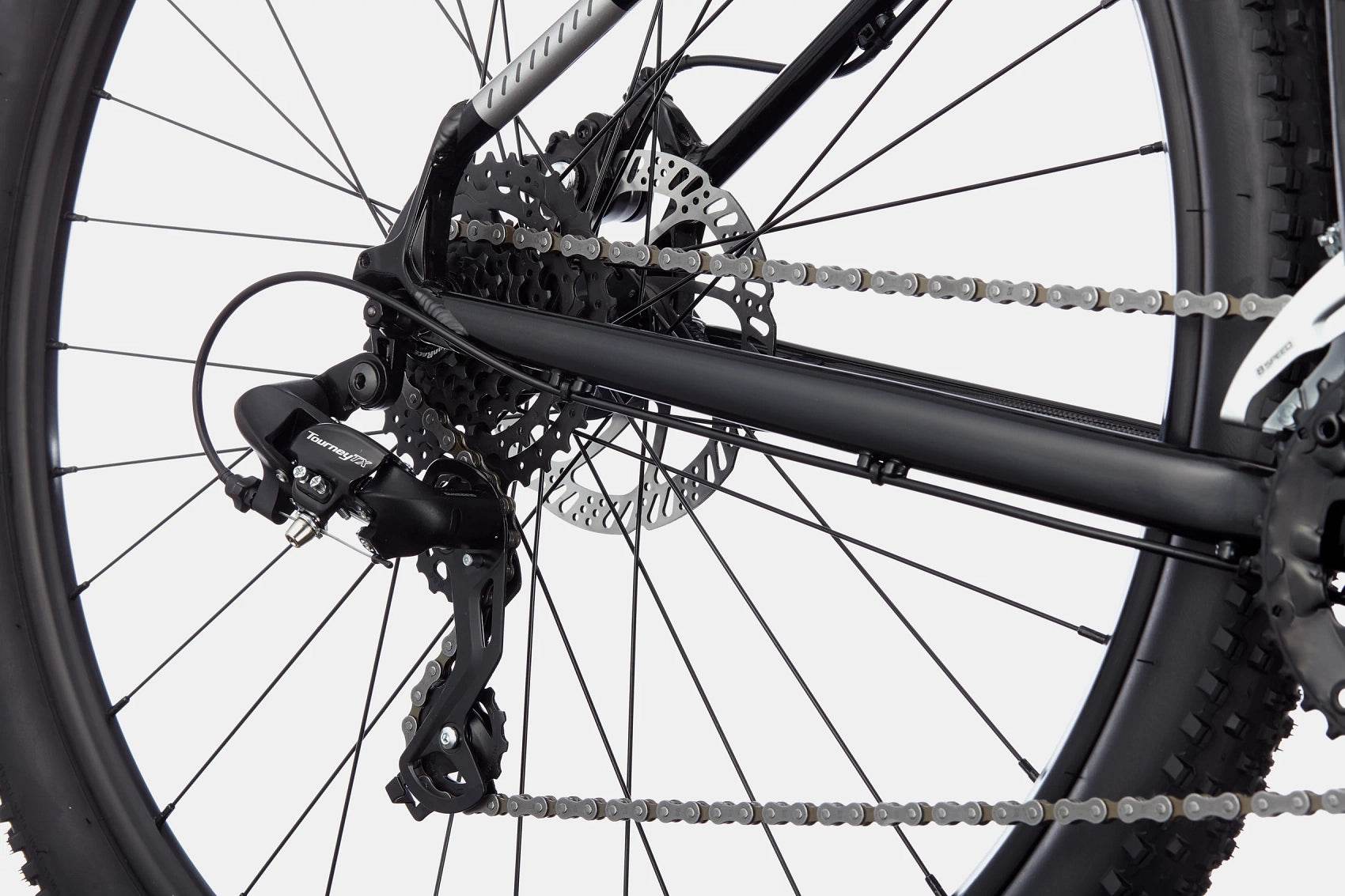

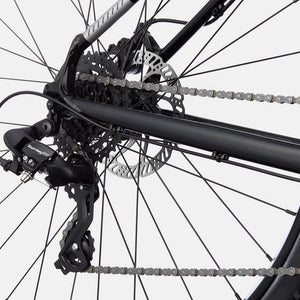

Rear Derailleur:
microSHIFT M26L, 7-speed

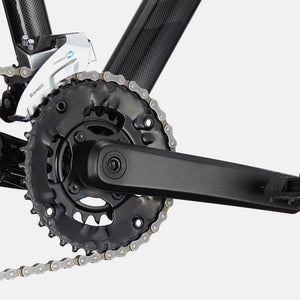

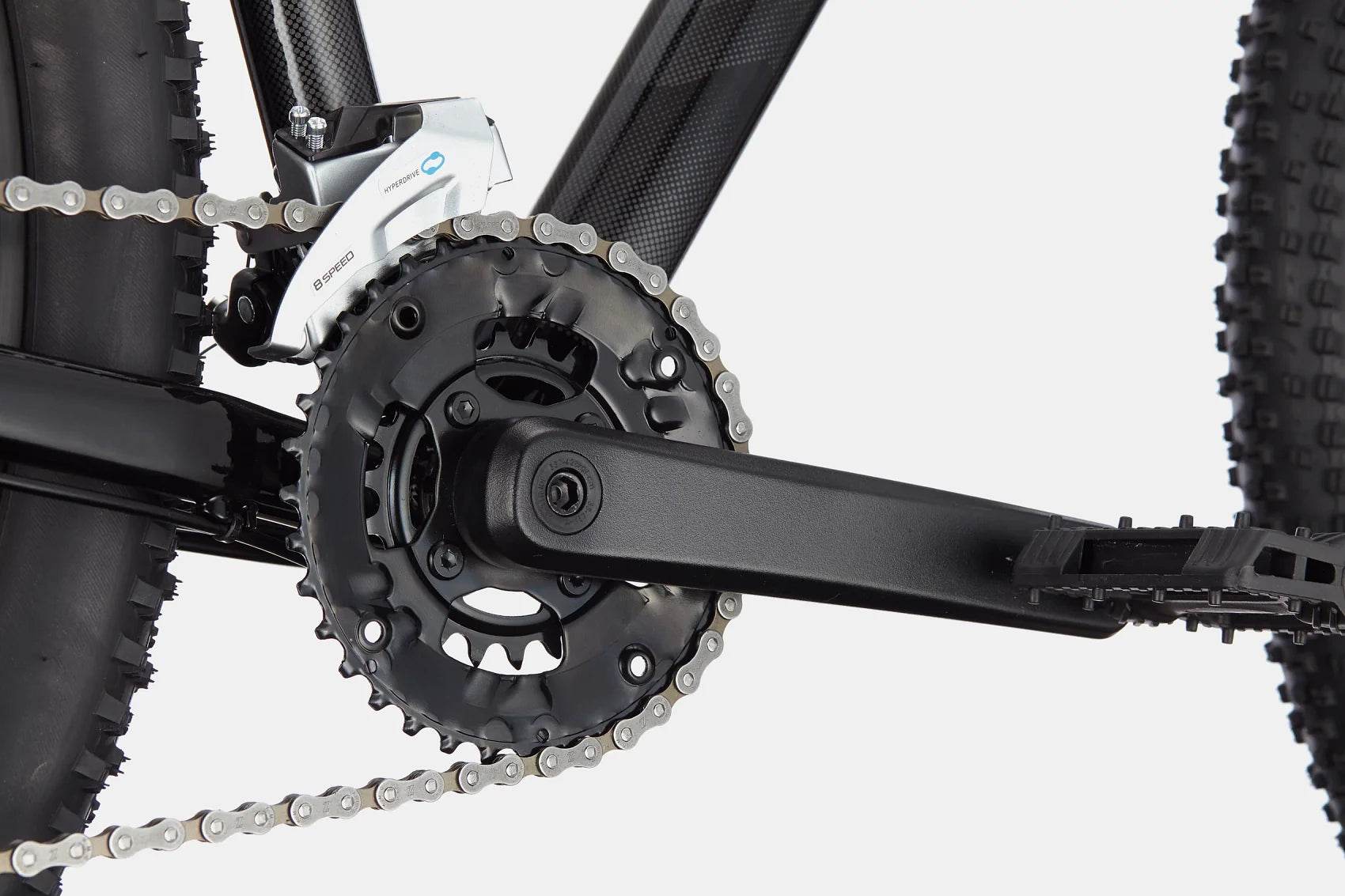

Front Derailleur:
microSHIFT Dual Pull Compact, 2-speed
Shifters:
microSHIFT, 2x7-speed
Cassette:
Sunrace, 11-34, 7-speed
Bottom Bracket:
Sealed cartridge, square taper
Brakes
Brakes:
Tektro mechanical disc, 160/160mm rotors
Wheels
Spokes:
Stainless steel, 14g
Hubs:
(F) Formula, QR / (R) Formula, QR
Front Tire:
WTB Ranger Comp, 29x2.25", DNA Compound
Rear Tire:
WTB Ranger Comp, 29x2.25", DNA Compound
Components

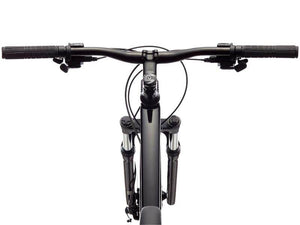

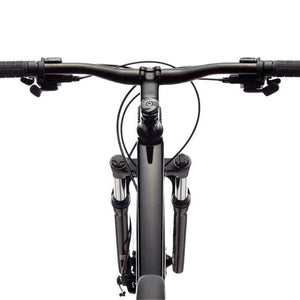

Handlebar:
6061 Alloy Riser, 31.8mm, 25mm rise, 700mm
Stem:
6061 Alloy, 31.8, 8°
Grips:
Cannondale Dual-Density
Saddle:
Cannondale Stage 3
Seatpost:
Cannondale 3, 6061 Alloy, 31.6x350mm (XS–SM), 400mm (MD–XL)
Note: Specifications are subject to change without notice based on component availability.
Size |
Height Range |
XS |
|
SM |
|
MD |
|
LG |
|
XL |
|
Geometry
