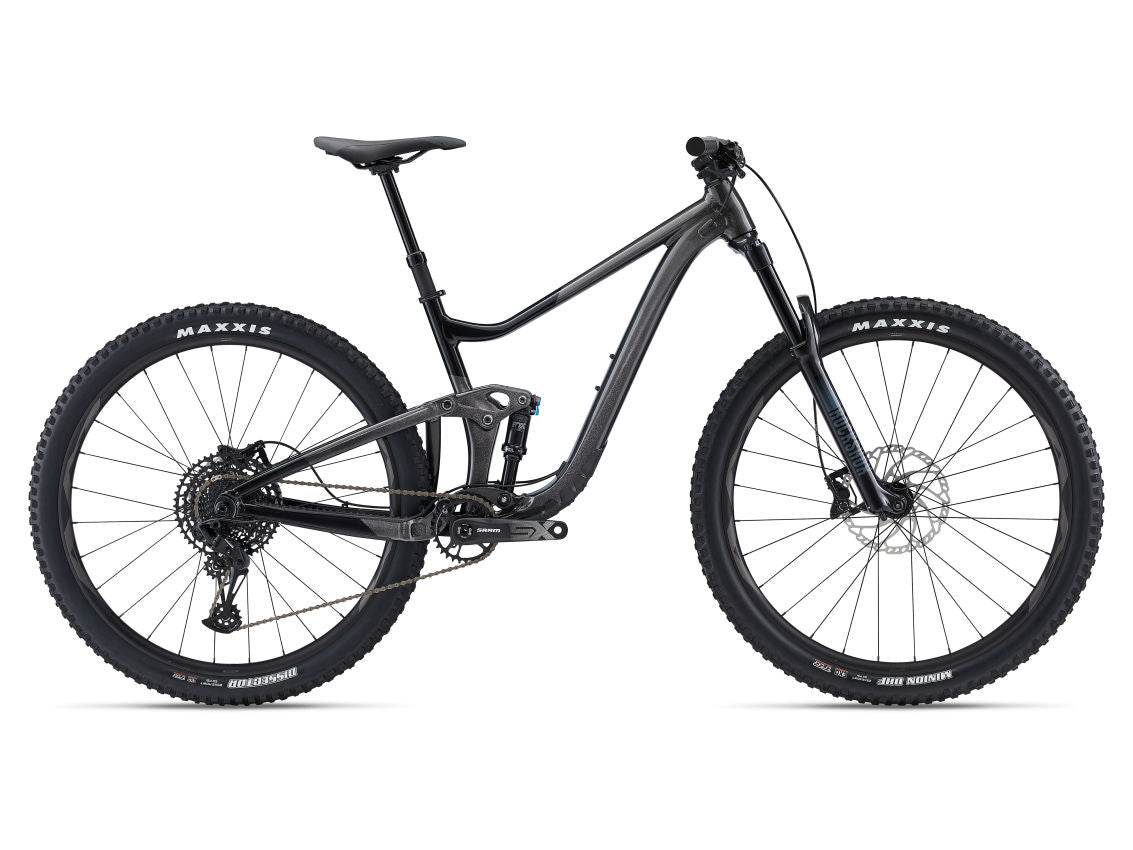

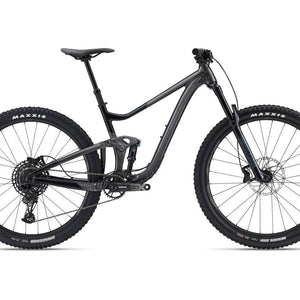

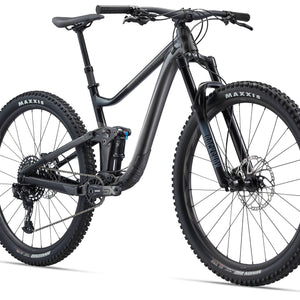

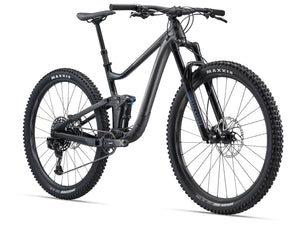

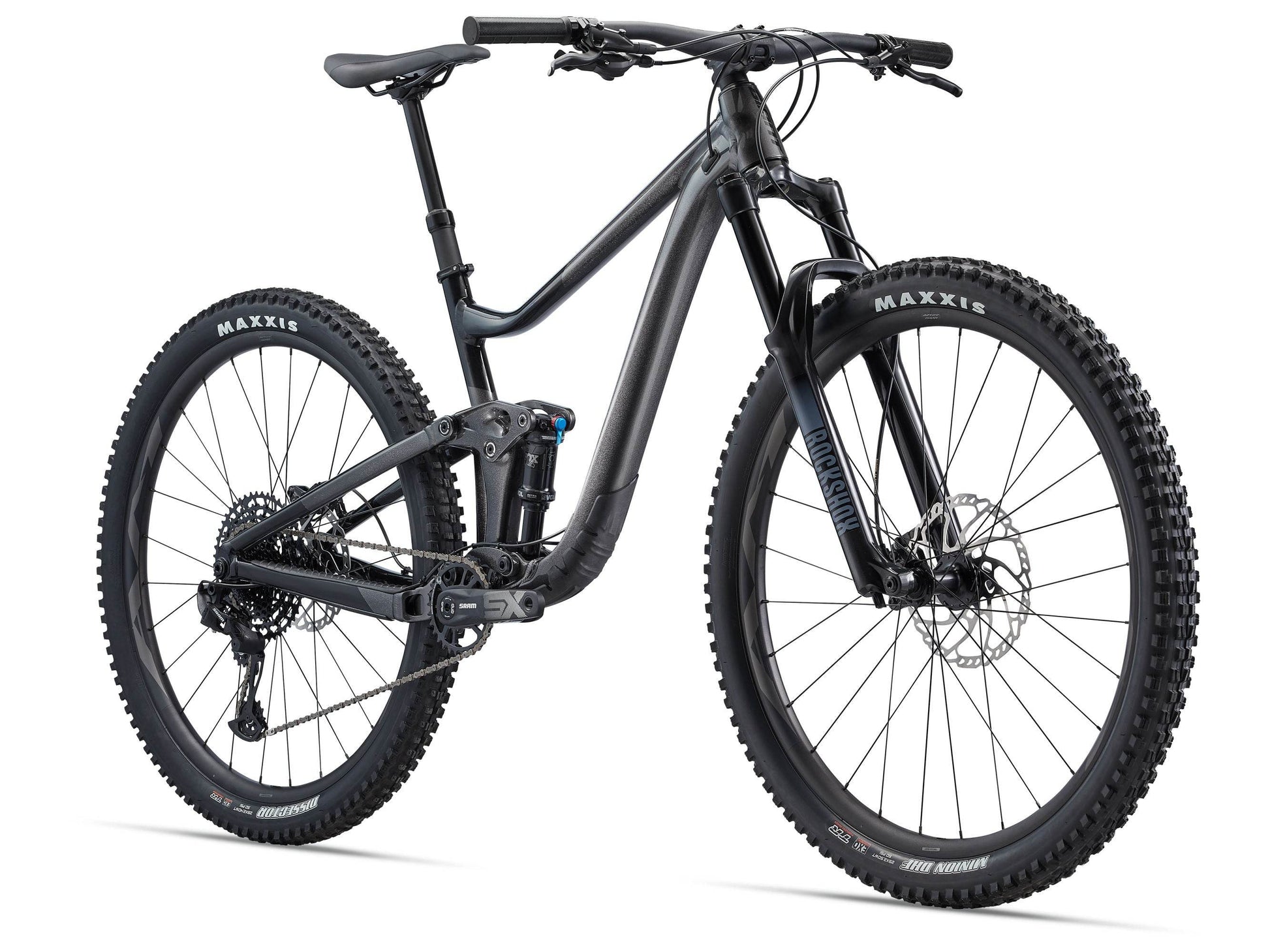

Conquer the Gnar. Chunky rock gardens, gnarly roots, and steep, technical climbs—the Giant Trance X 29 is for riders who live for the hardest parts of the trail. With longer suspension travel and flip chip-adjustable geometry, this aluminum trail slayer is built to charge through aggressive single track and descend with total confidence.
Maestro Suspension Technology: Four strategically placed pivots and two linkages work together to create an active, efficient, and independent suspension system for supreme control.
Flip Chip - Maestro: Easily adjust headtube and seat tube angles, as well as bottom bracket height, to match your riding style and terrain with the flip chip on the upper rocker arm.
Frameset
Frame:
ALUXX SL-Grade Aluminum, 135mm Maestro, flip chip, 12x148mm thru-axle
Fork:
RockShox 35 Gold RL, 150mm, 44mm offset, 15x110 Maxle Stealth
Rear Shock:
Fox Float DPS Performance, 185/55, custom tuned
Headset:
Giant Overdrive 1 1/8"–1 1/2" tapered
Drivetrain
Rear Derailleur:
SRAM SX Eagle, 12-speed
Shifters:
SRAM SX Eagle, 1x12
Crank:
SRAM SX, 30T, 170mm
Chain:
SRAM SX Eagle, 12-speed
Bottom Bracket:
Shimano, press fit
Brakes
Brakes:
Shimano MT520, hydraulic disc
Wheels
Rims:
Giant AM 29, alloy, tubeless ready
Hubs:
Shimano, [F] 110x15 / [R] 148x12 sealed bearing
Front Tire:
Maxxis Minion DHF 29x2.5", 3C, EXO, TR, tubeless
Rear Tire:
Maxxis Dissector 29x2.4", 3C, EXO, TR, tubeless
Components
Handlebar:
Giant Contact TR35, 780x35mm, 20mm rise
Stem:
Giant Contact SL 35, 50mm
Seatpost:
Giant Contact Switch dropper, 170mm travel, 30.9 x 450mm
Note: Specifications are subject to change without notice based on component availability.
Size |
Height Range |
S |
|
M |
|
L |
|
XL |
|
