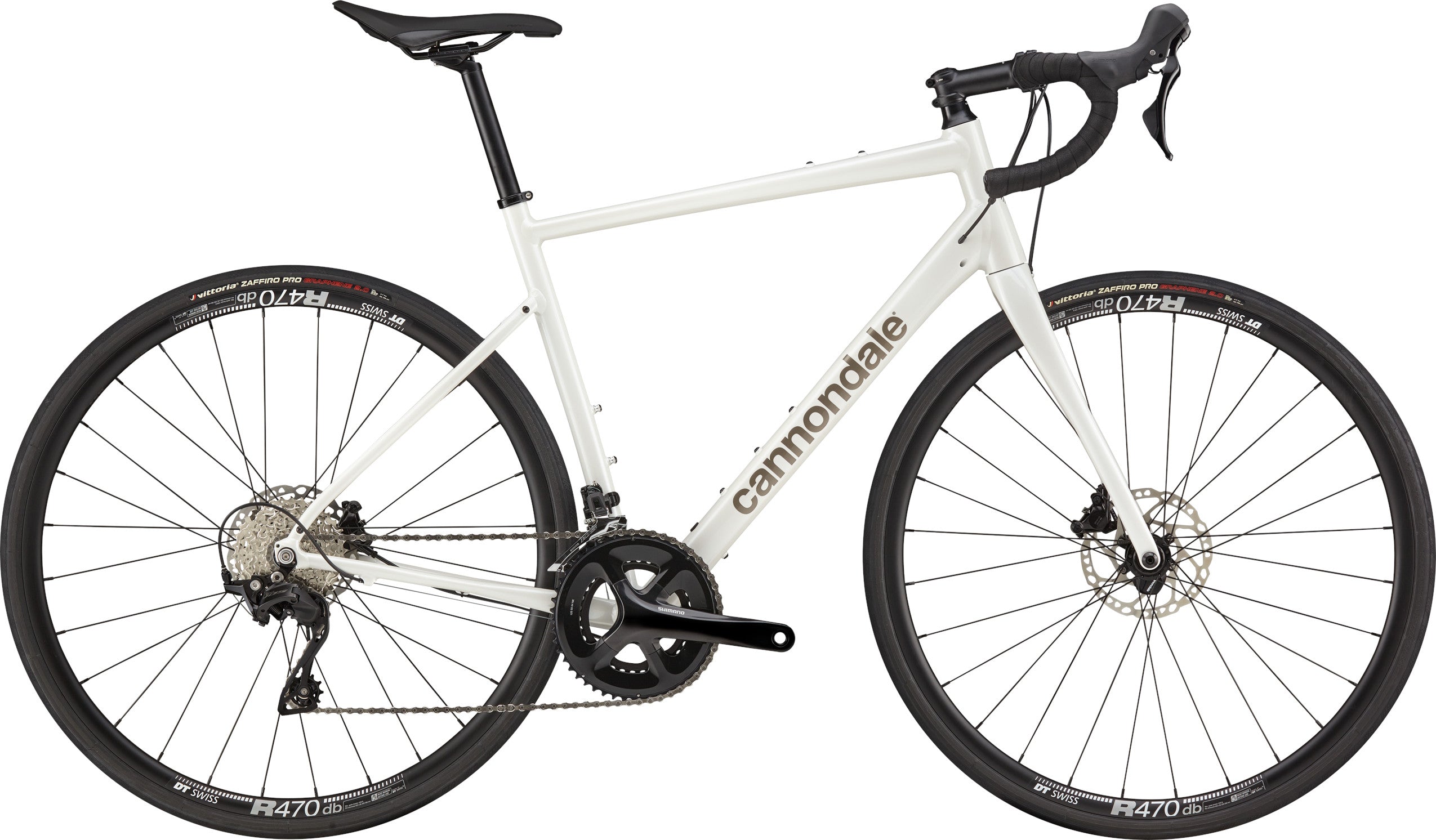

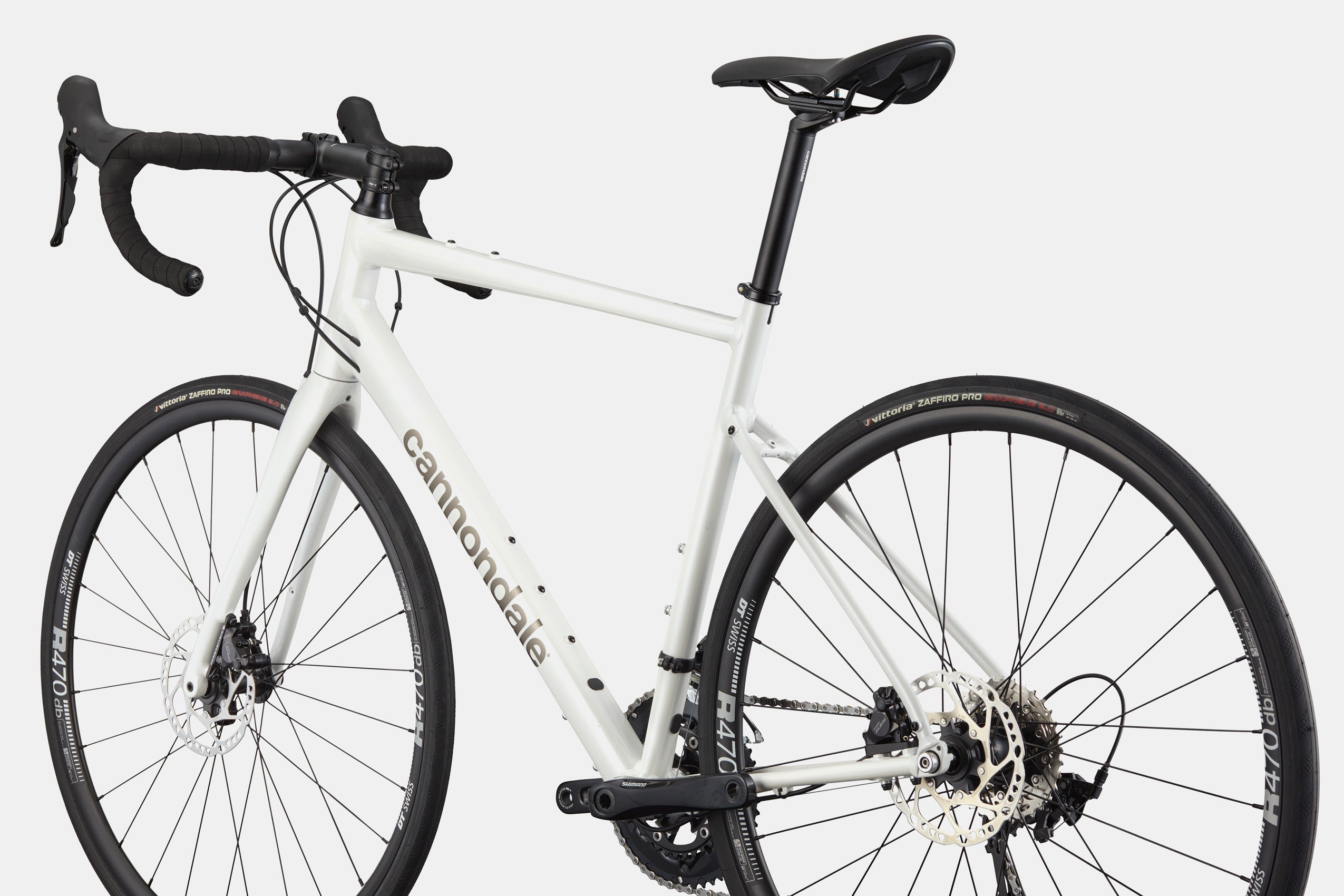

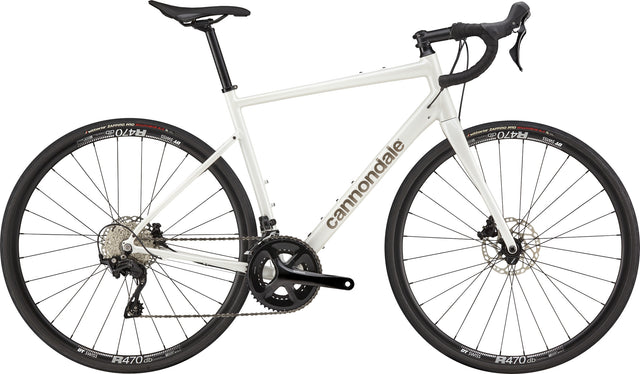

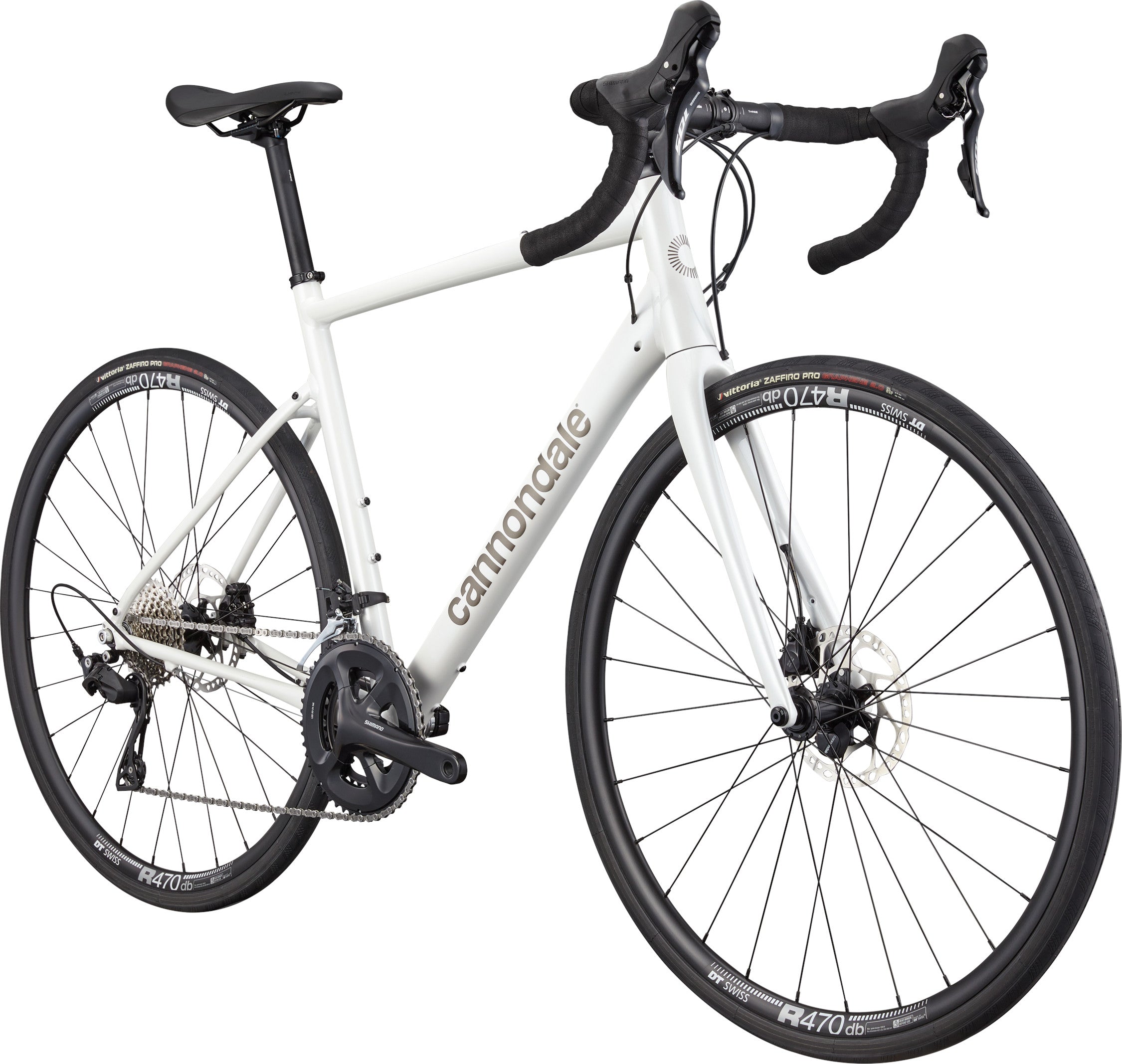

The Cannondale Synapse 1 is a versatile, endurance-focused road bike designed for comfort, speed, and confidence on any ride. Built around a lightweight SmartForm C2 Alloy frame with a full carbon fork, it features Shimano 105 12-speed components and hydraulic disc brakes for precise shifting and smooth, reliable stopping power. DT Swiss R470 wheels paired with 700x30c Vittoria tires provide a smooth, stable ride on varied road surfaces, while the ergonomic Synapse geometry and SAVE micro-suspension technology reduce fatigue on long climbs and rough pavement. Trainer-ready with included end caps, and complete with a top-tube bag for on-the-go storage, the Synapse 1 is a performance-driven, all-around road companion for riders seeking comfort, control, and versatility.
Frameset
Frame:
Lightweight SmartForm C2 Alloy, SAVE, BB30, internal cable routing, flat mount, 12x100mm thru-axle
Fork:
Synapse Carbon, integrated crown race, 12x100mm thru-axle, internal routing, flat mount brake, fender mounts
Headset:
Integrated, 1-1/8" - 1-1/4"
Drivetrain

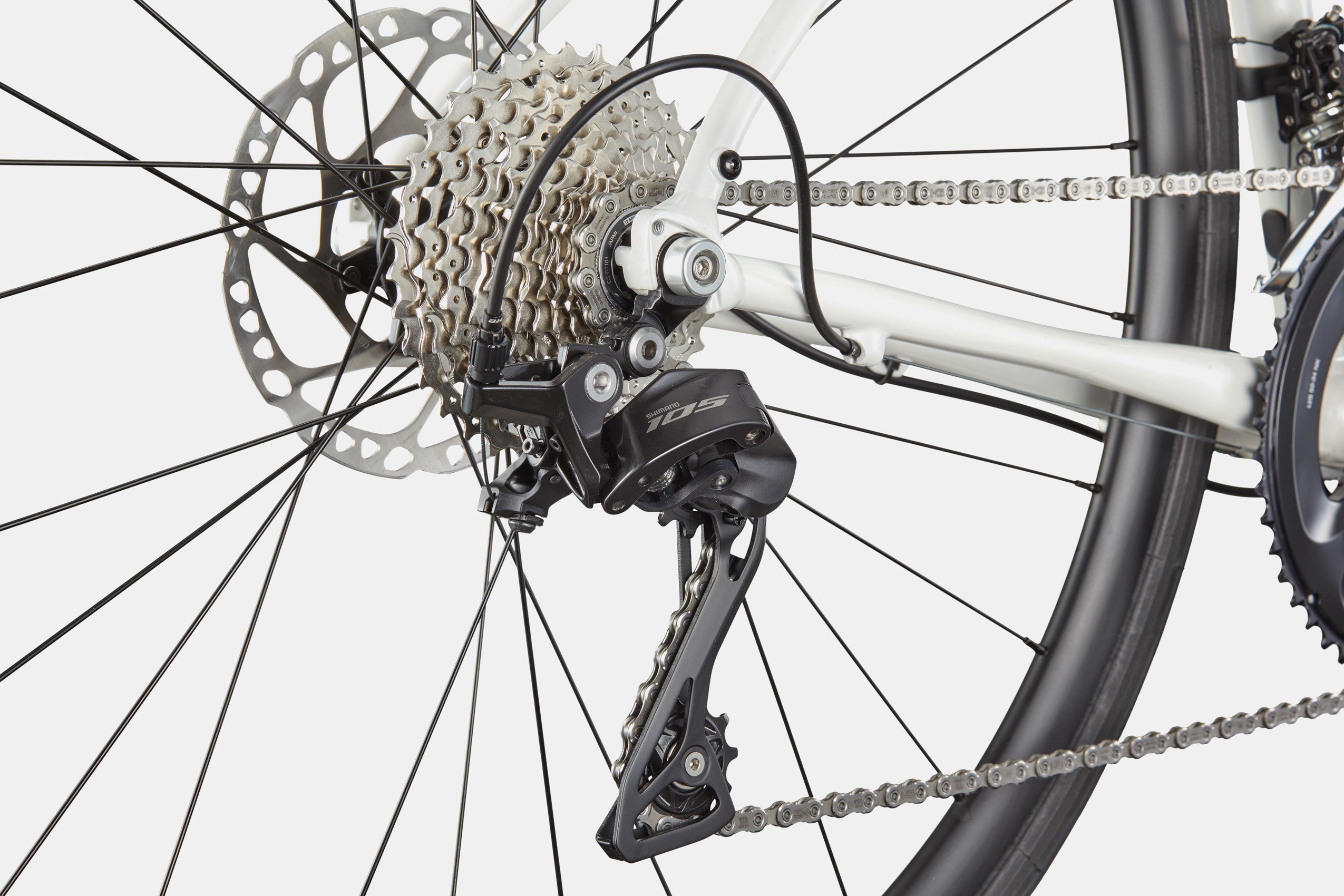

Rear Derailleur:
Shimano 105 7100, 12-speed
Front Derailleur:
Shimano 105 7100, braze-on, 2-speed

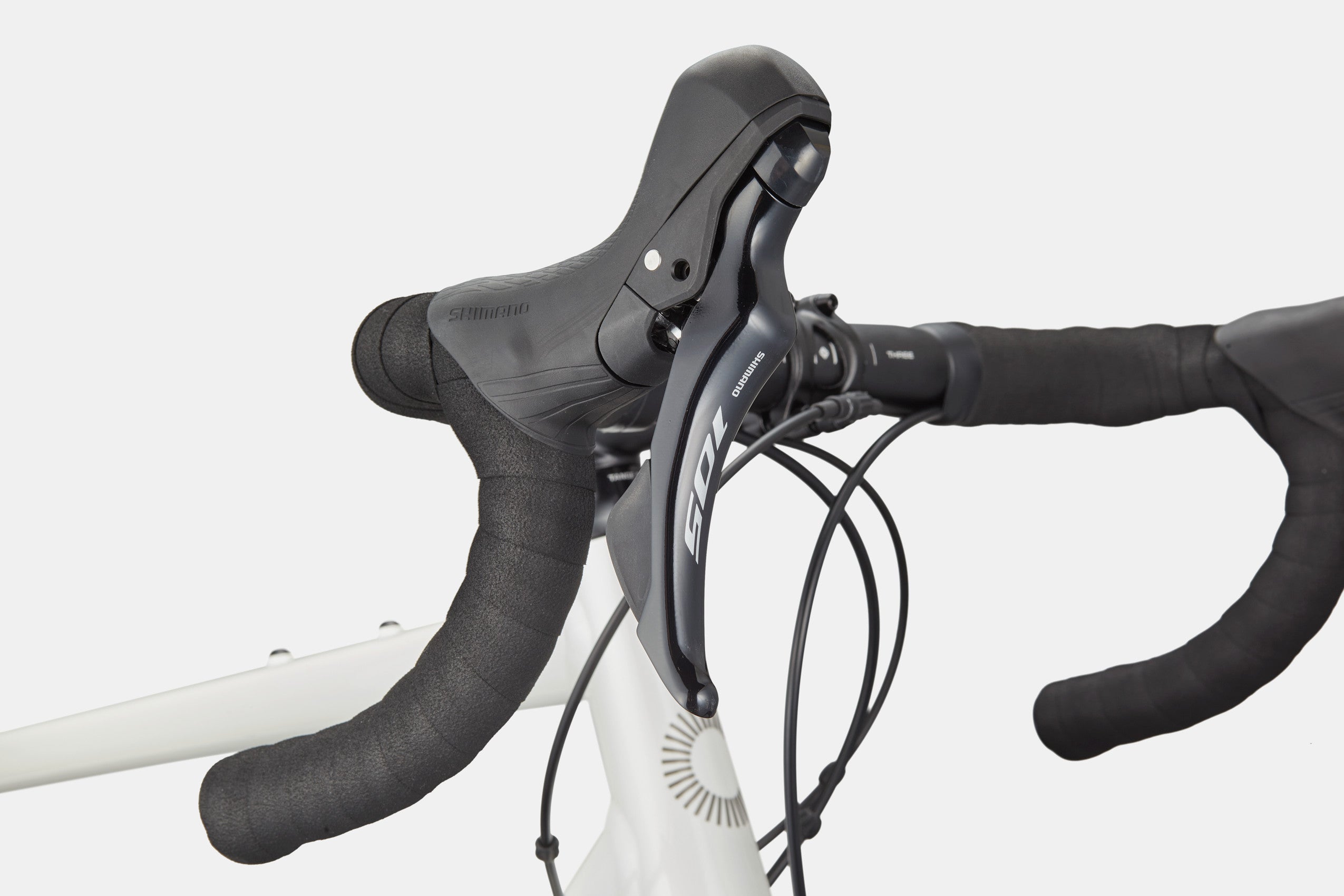

Shifters:
Shimano 105 7100, 2 x 12-speed
Chain:
Shimano 105 7100, 12-speed

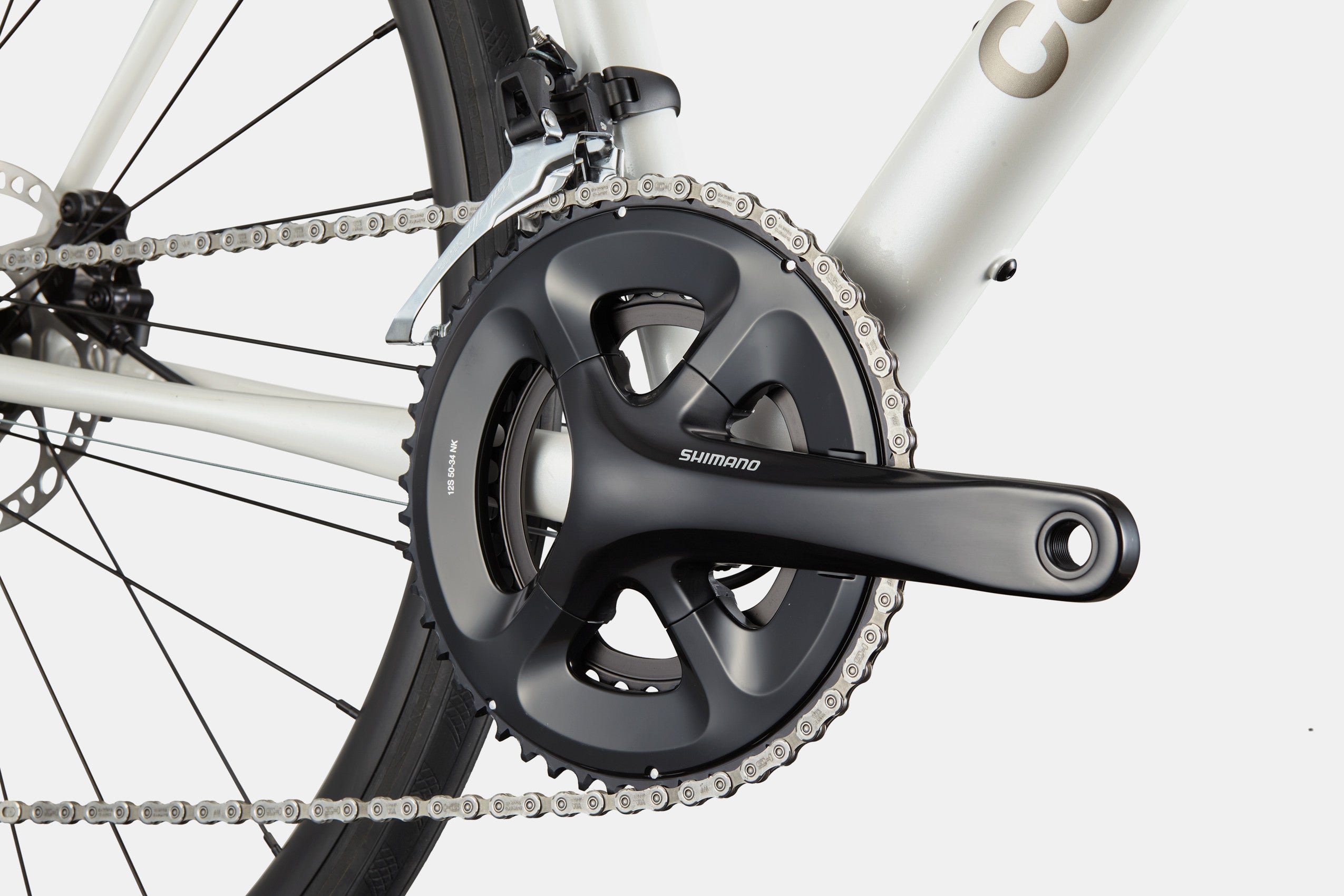

Crank:
Shimano RS520, 50/34
Rear Cogs:
Shimano 105 7100, 12-speed, 11-34
Bottom Bracket:
Shimano BB-RS500, BSA
Brakes
Brakes:
Shimano 105 7170 Hydraulic Disc
Rotors:
RT70 160mm, Center Lock rotors
Brake Levers:
Shimano 105
Wheels
Rims:
DT Swiss R470 DB, 28h
Spokes:
Stainless steel, 14g
Hubs:
(F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
Front Tire:
Vittoria Zaffiro Pro Slick, 700x30c
Rear Tire:
Vittoria Zaffiro Pro Slick, 700x30c
Components

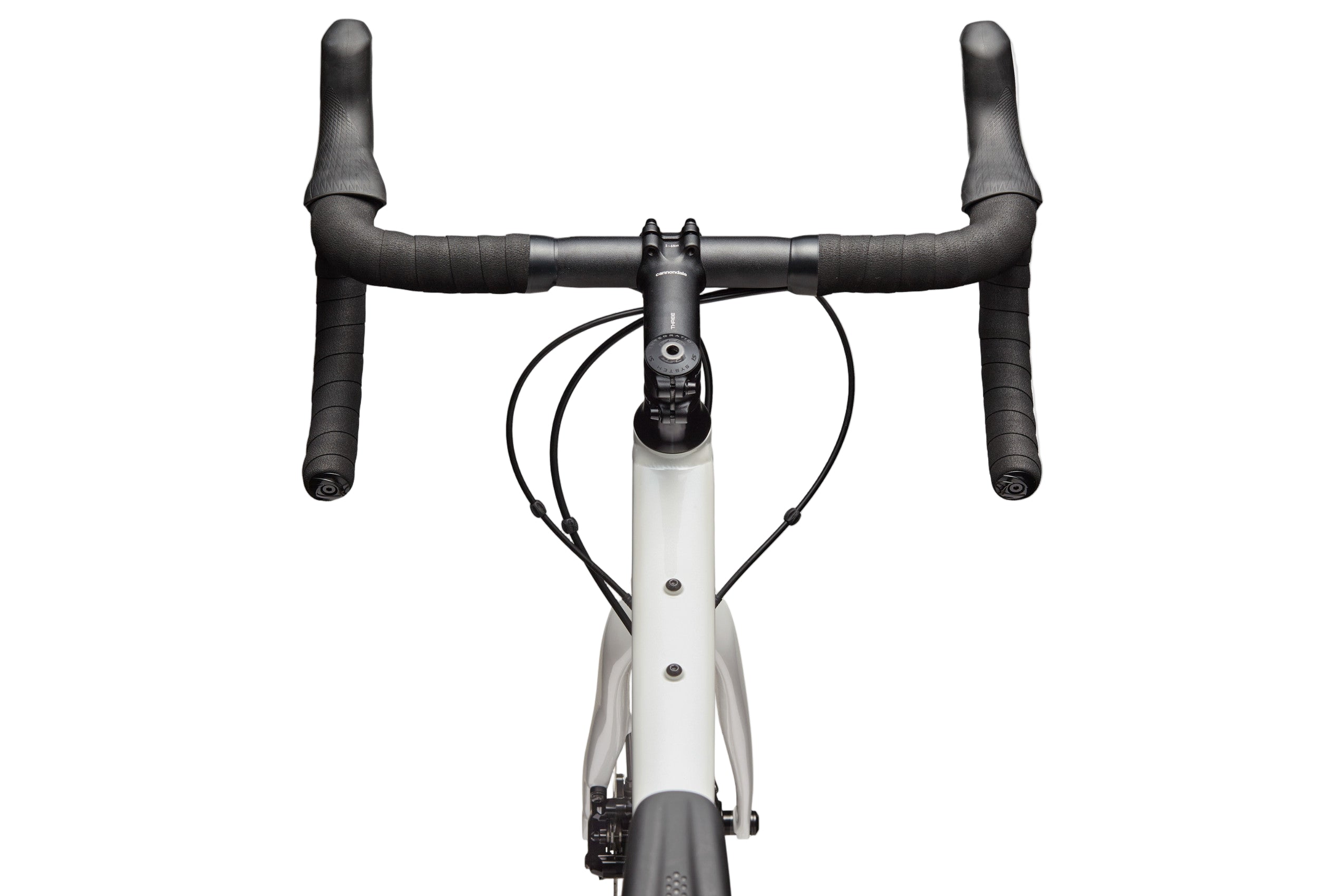

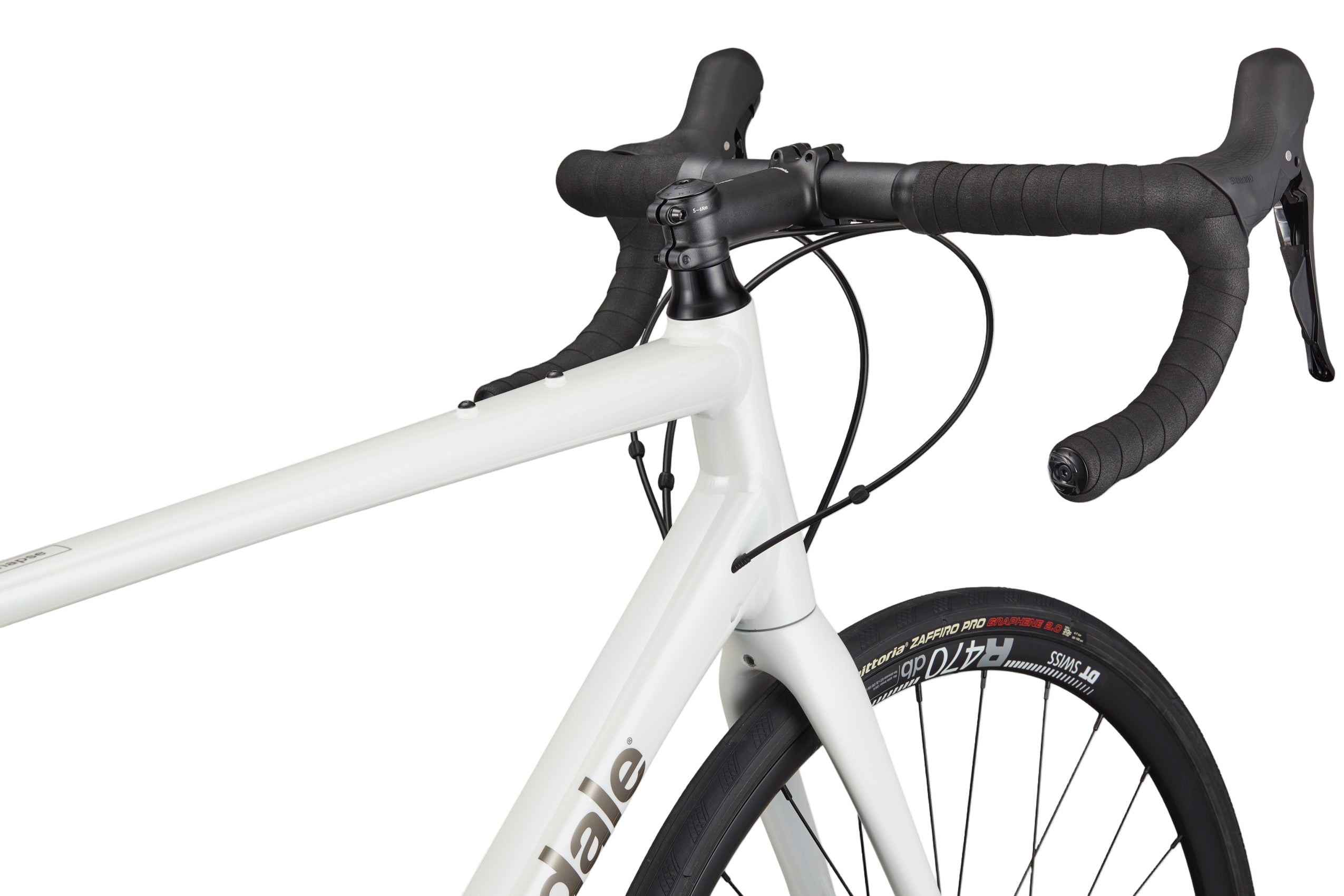

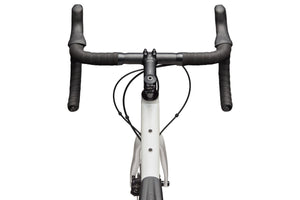

Handlebar:
Cannondale 3, 6061 Alloy, Compact
Stem:
Cannondale 3, 6061 Alloy, 31.8, 7°
Grips:
Cannondale Bar Tape, 3.5mm
Saddle:
Fizik Aliante Delta, S-alloy rails
Seatpost:
Cannondale 3, 6061 Alloy, 27.2x350mm
Note: Specifications are subject to change without notice based on component availability.
Size |
Height Range |
44 |
|
48 |
|
51 |
|
54 |
|
56 |
|
58 |
|
61 |
|
