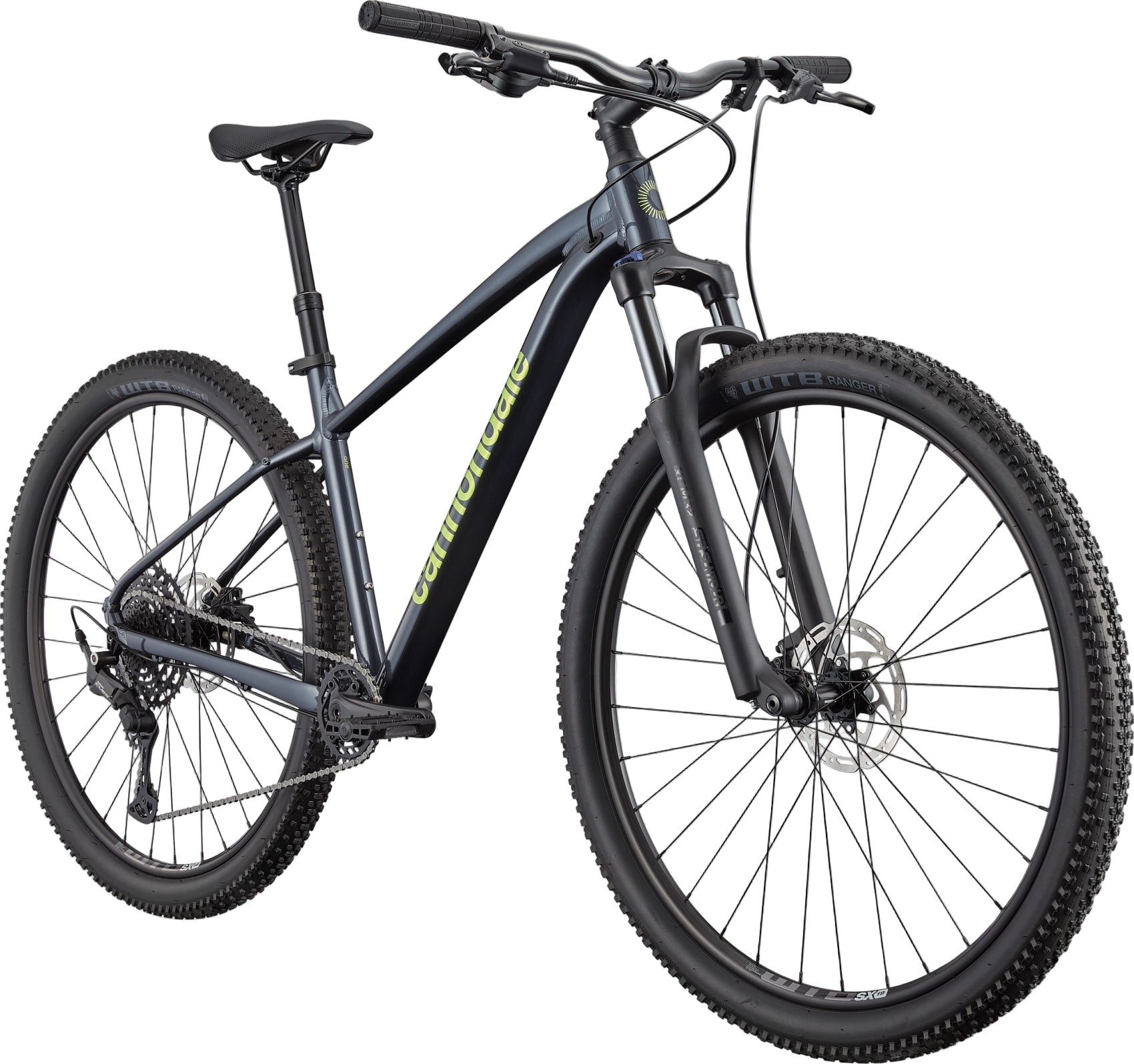

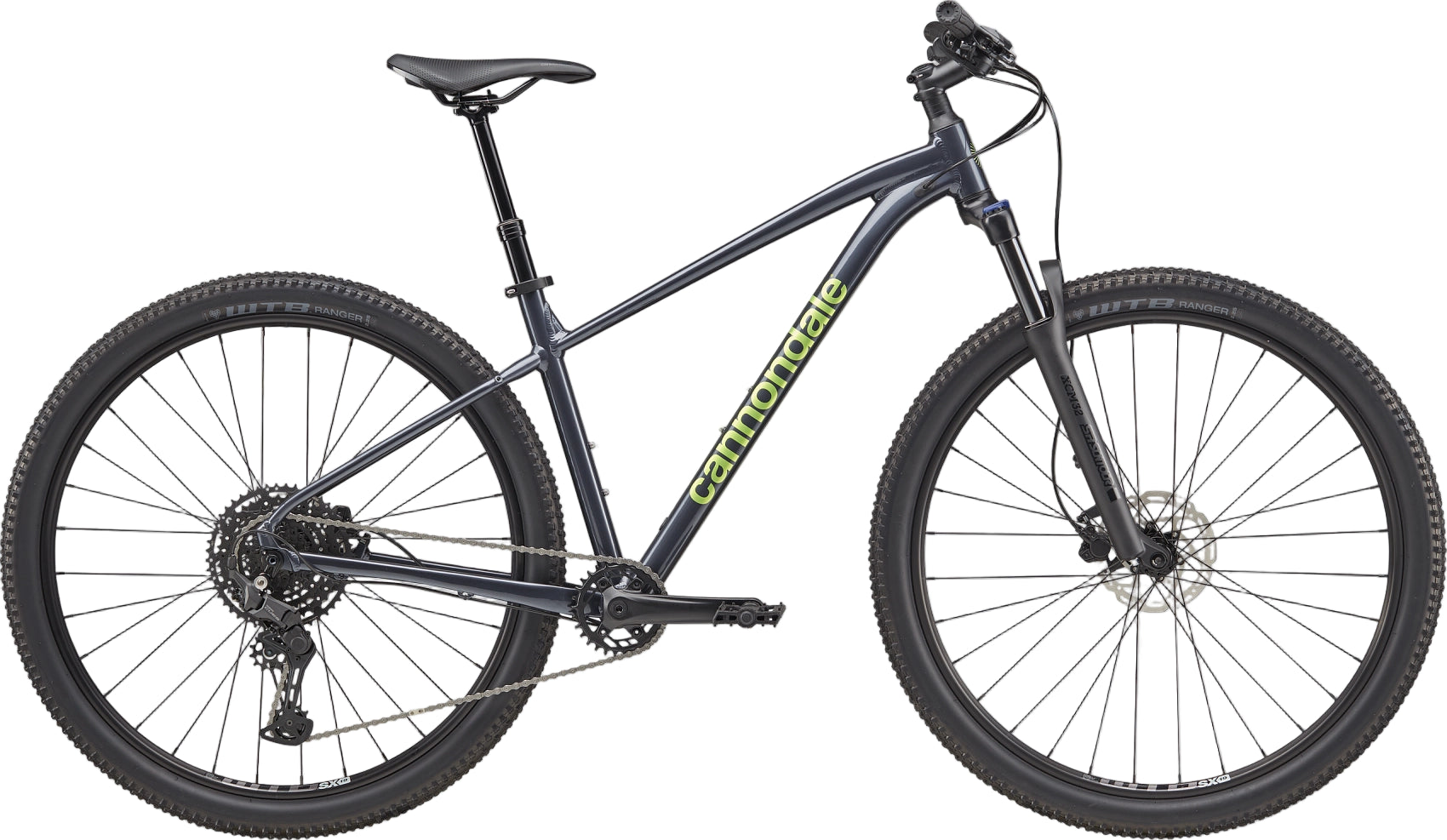

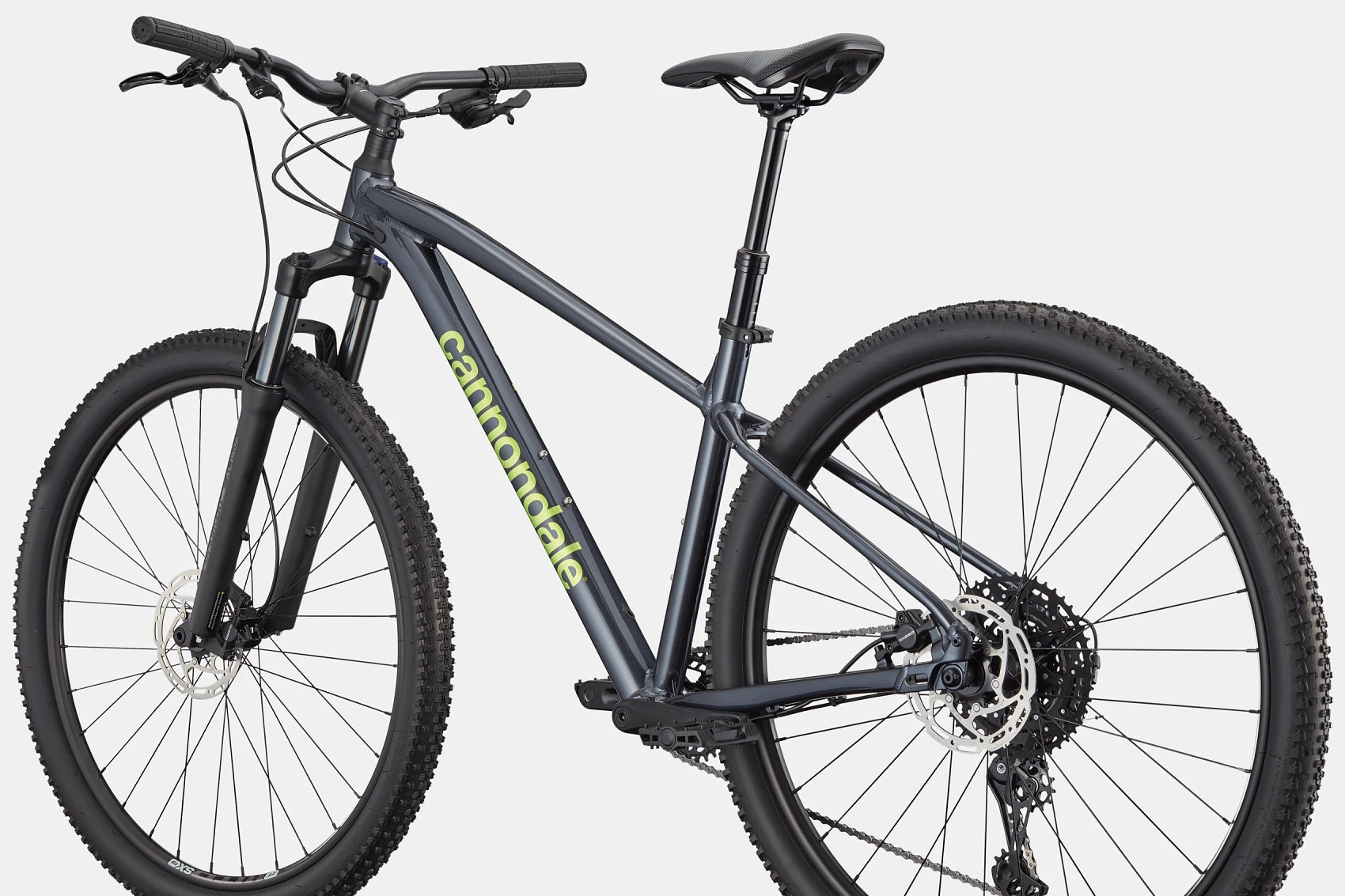

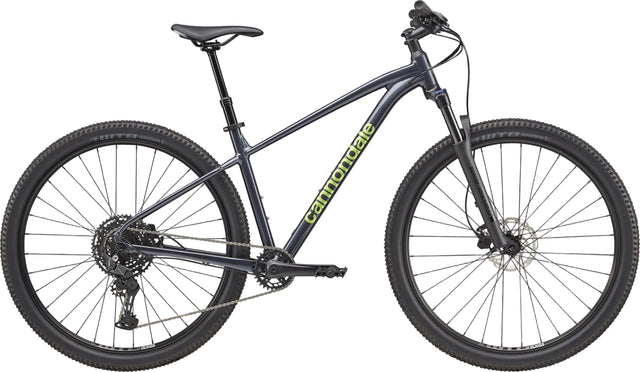

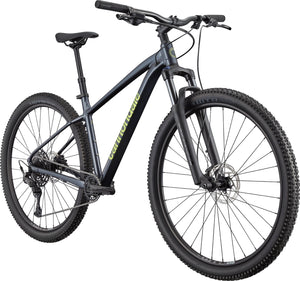

The Cannondale Trail 1 is your upgrade to next-level mountain biking—light, capable, and confidence-boosting, with the performance you’d expect from a brand trusted by champions. Its lightweight SmartForm C3 Alloy frame pairs with a bump-eating SR Suntour XCM32 fork (100mm / 80mm travel by size) for a responsive, smooth ride on dirt paths and singletrack. A Shimano CUES 10-speed 1x drivetrain keeps shifting simple and reliable, while Tektro hydraulic disc brakes deliver dependable stopping power in all conditions. With size-specific 27.5" or 29" wheels, internal routing, rack and fender mounts, and a 130mm dropper post for instant on-trail adjustments, the Trail 1 is built for fun—whether you're exploring trails, commuting, or cruising around town.
Frameset
Frame:
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, internal cable routing, dropper compatible, hidden kickstand mount, BSA-73, 29"
Fork:
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset
Headset:
Semi-Integrated, 1-1/8"
Drivetrain

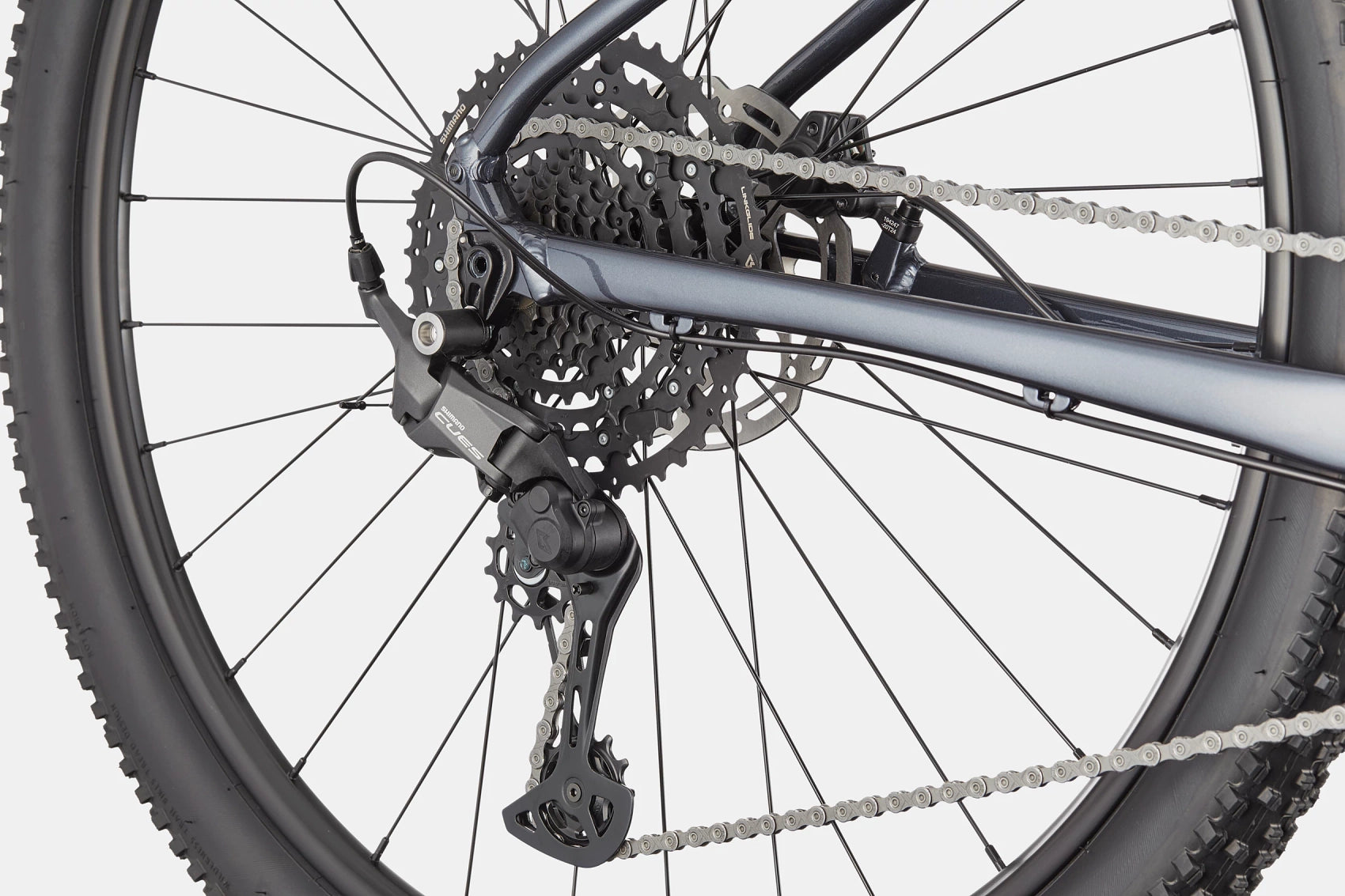

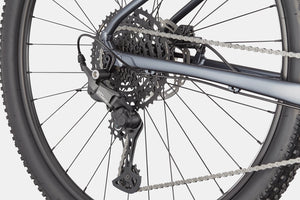

Rear Derailleur:
Shimano CUES U6000, 10-speed
Shifters:
Shimano CUES U6000, 10-speed

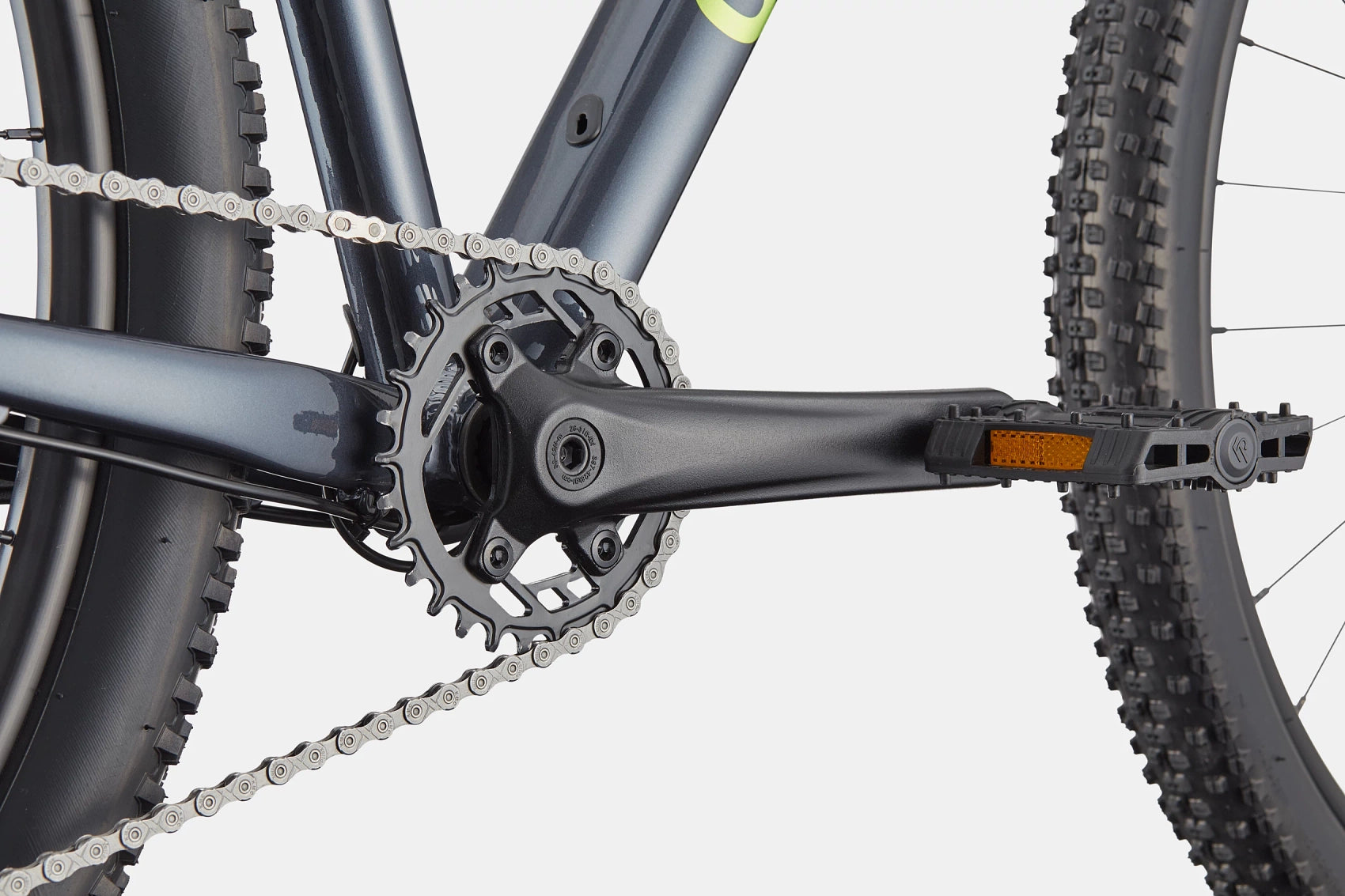

Crank:
Prowheel Charm, 30T
Cassette:
Shimano CUES, 11-48, 10-speed
Bottom Bracket:
ProWheel, square taper
Brakes

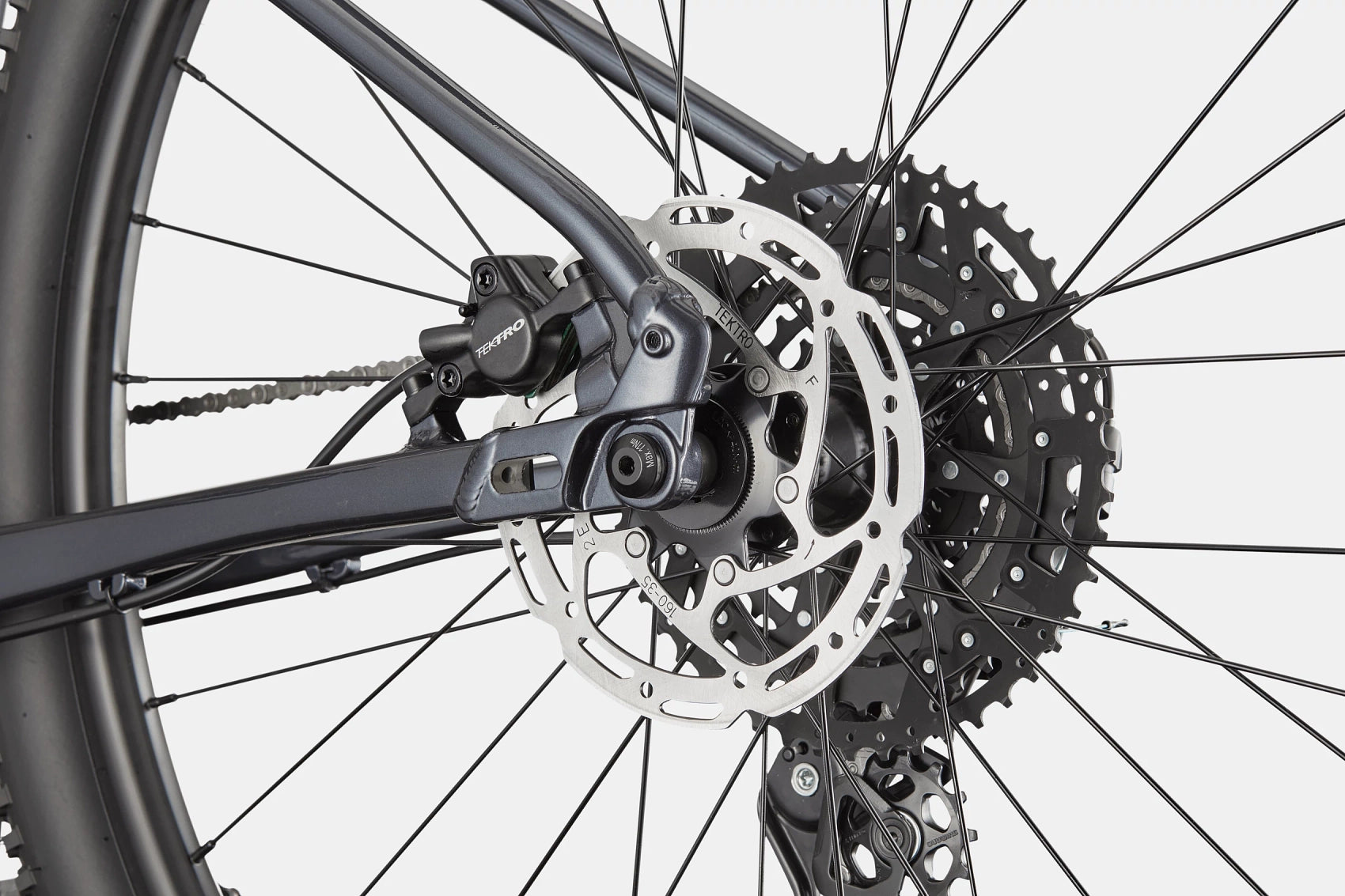

Brakes:
Tektro M275 hydraulic disc, 160/160mm rotors
Levers:
Tektro Hydraulic Disc
Wheels
Spokes:
Stainless steel, 14g
Hubs:
(F) Shimano TC500, 15x110mm / (R) Shimano TC500, 12x142mm
Front Tire:
Trail Boss, 29x2.25", Comp, 30 TPI
Rear Tire:
Trail Boss, 29x2.25", Comp, 30 TPI
Components

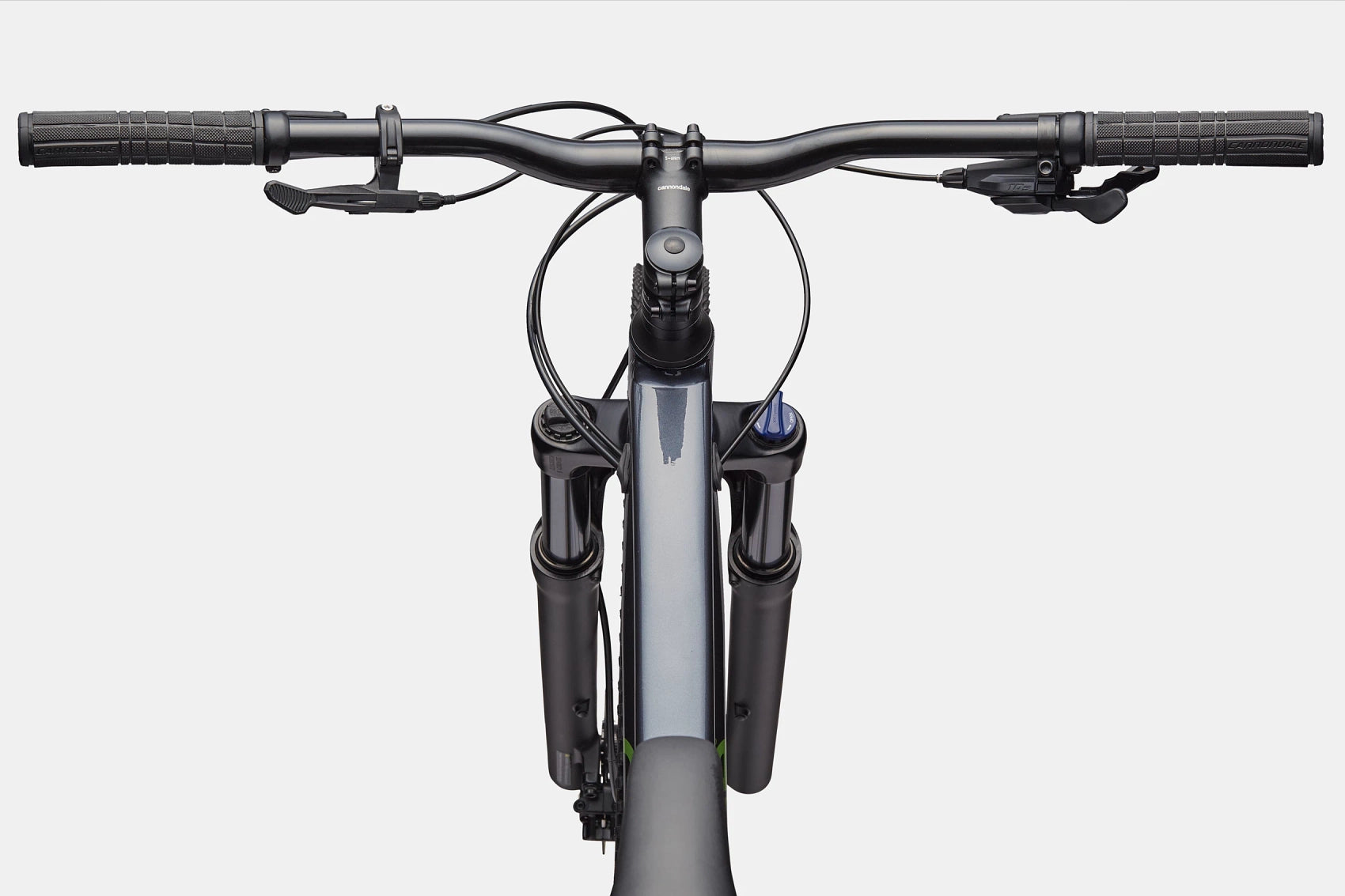

Handlebar:
Cannondale Riser, 6061 Alloy, 720mm, 25mm rise, 8° sweep
Stem:
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips:
Cannondale Dual-Density
Seatpost:
JD Dropper, internal routing, 31.6, 130mm
Note: Specifications are subject to change without notice based on component availability.
| Size |
Height Range |
| XS |
|
| SM |
|
| MD |
|
| LG |
|
| XL |
|
