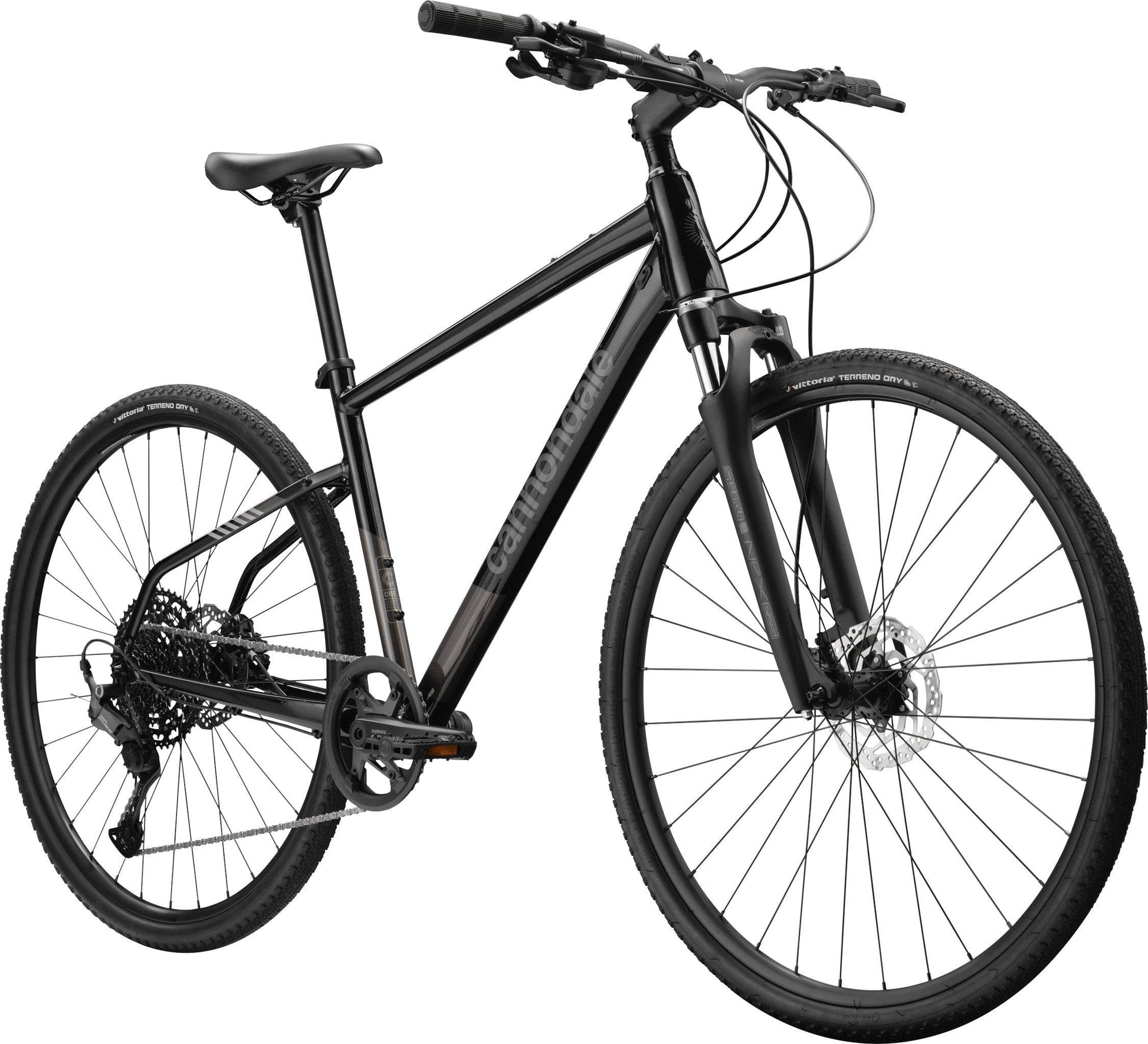

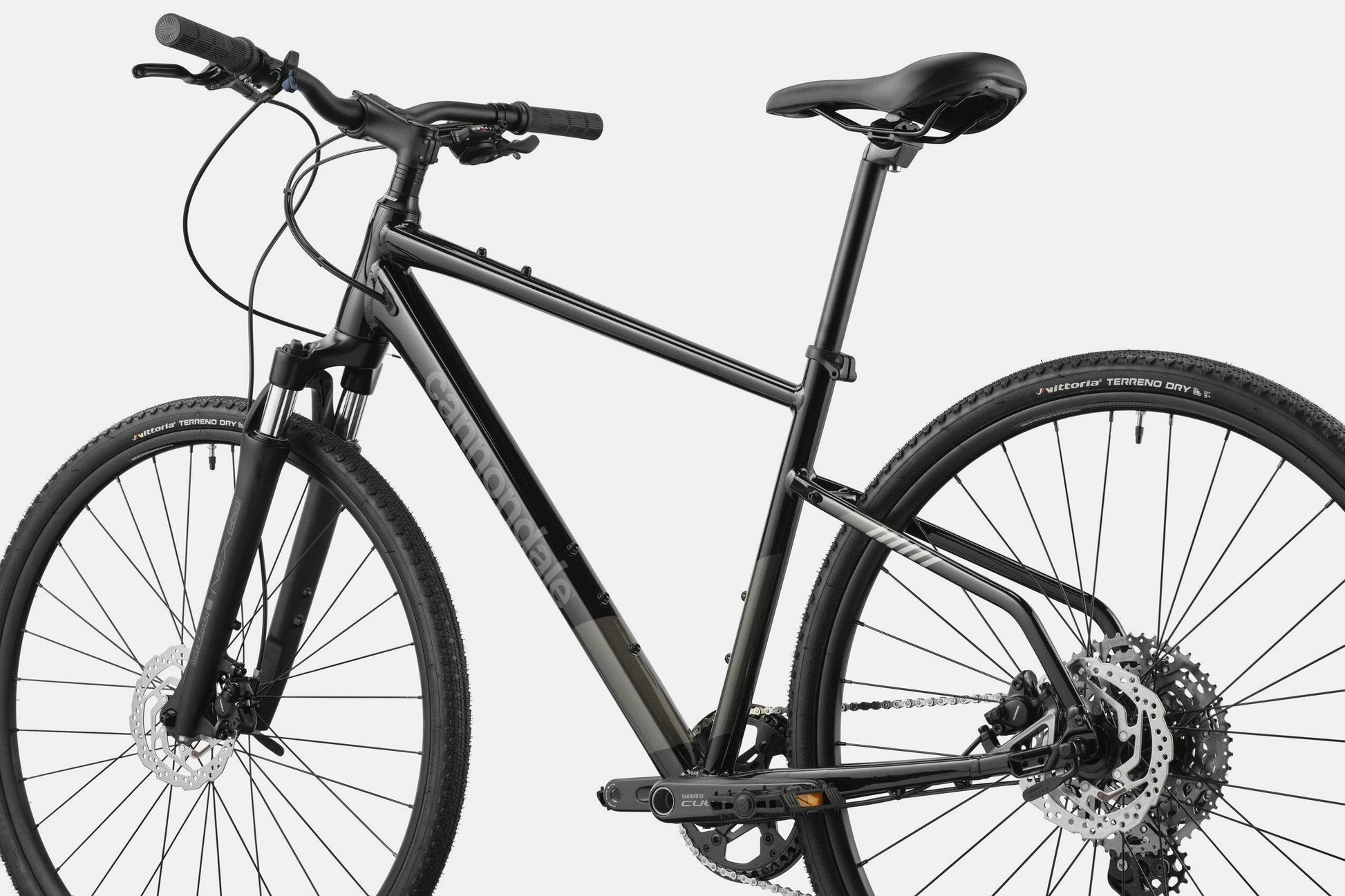

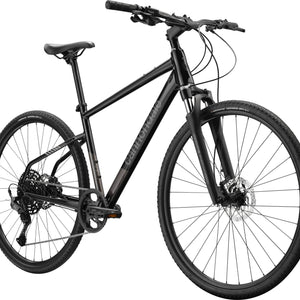

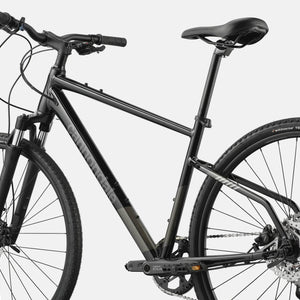

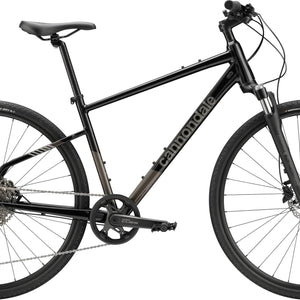

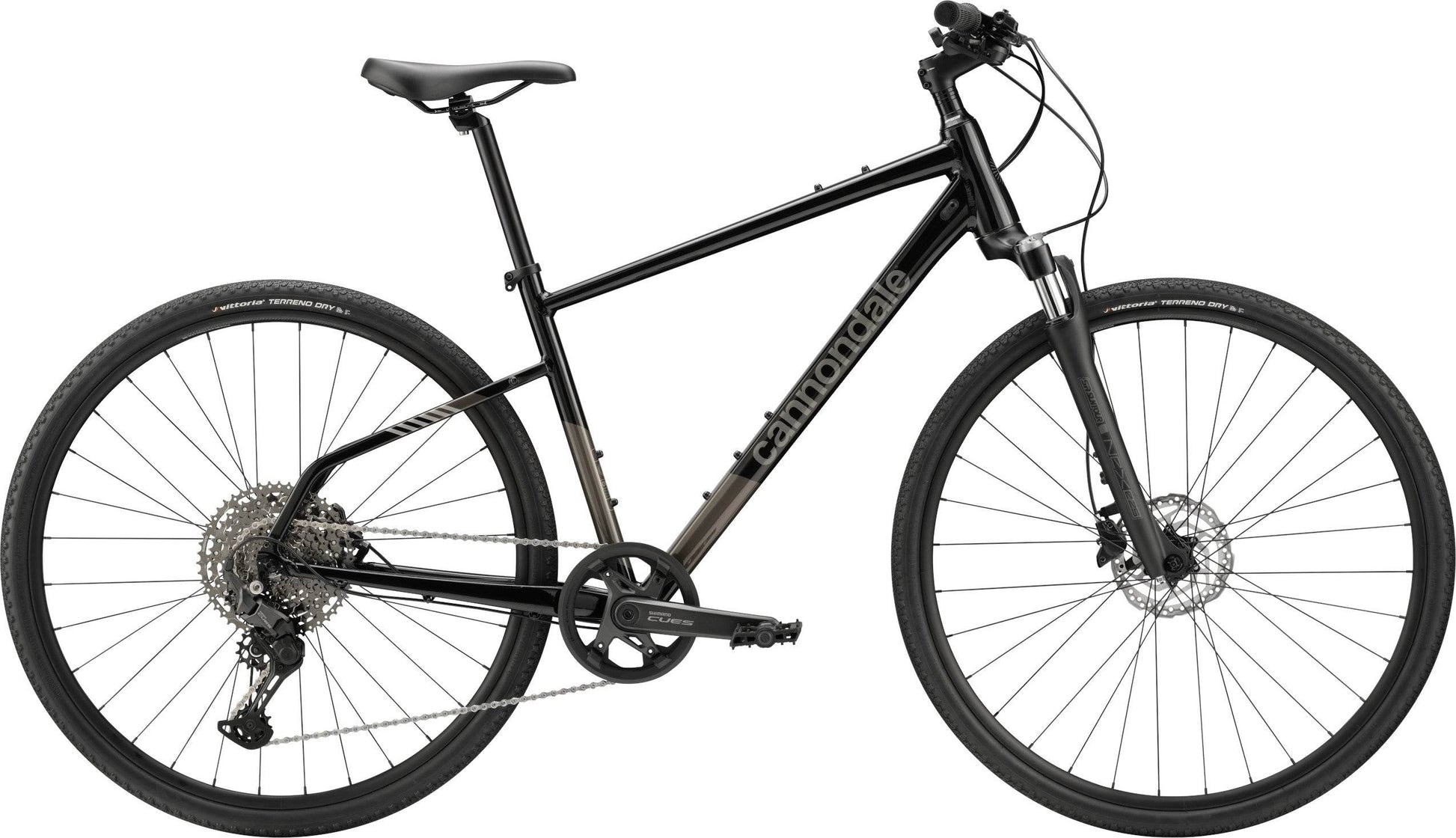

The Cannondale Quick CX 1 is built for adventure—ready to tackle city streets, park paths, and gravel roads with confidence. Its lightweight alloy frame and 50mm Suntour suspension fork smooth out bumps, while multi-surface Vittoria Terreno Dry tires and Shimano hydraulic disc brakes deliver grip and control on any terrain. The upright, mountain bike-inspired riding position ensures comfort and visibility. With an 11-speed Shimano CUES drivetrain for smooth shifting and reflective details for added safety, the Quick CX 1 is your versatile ride for wherever the road—or trail—takes you.
Frameset

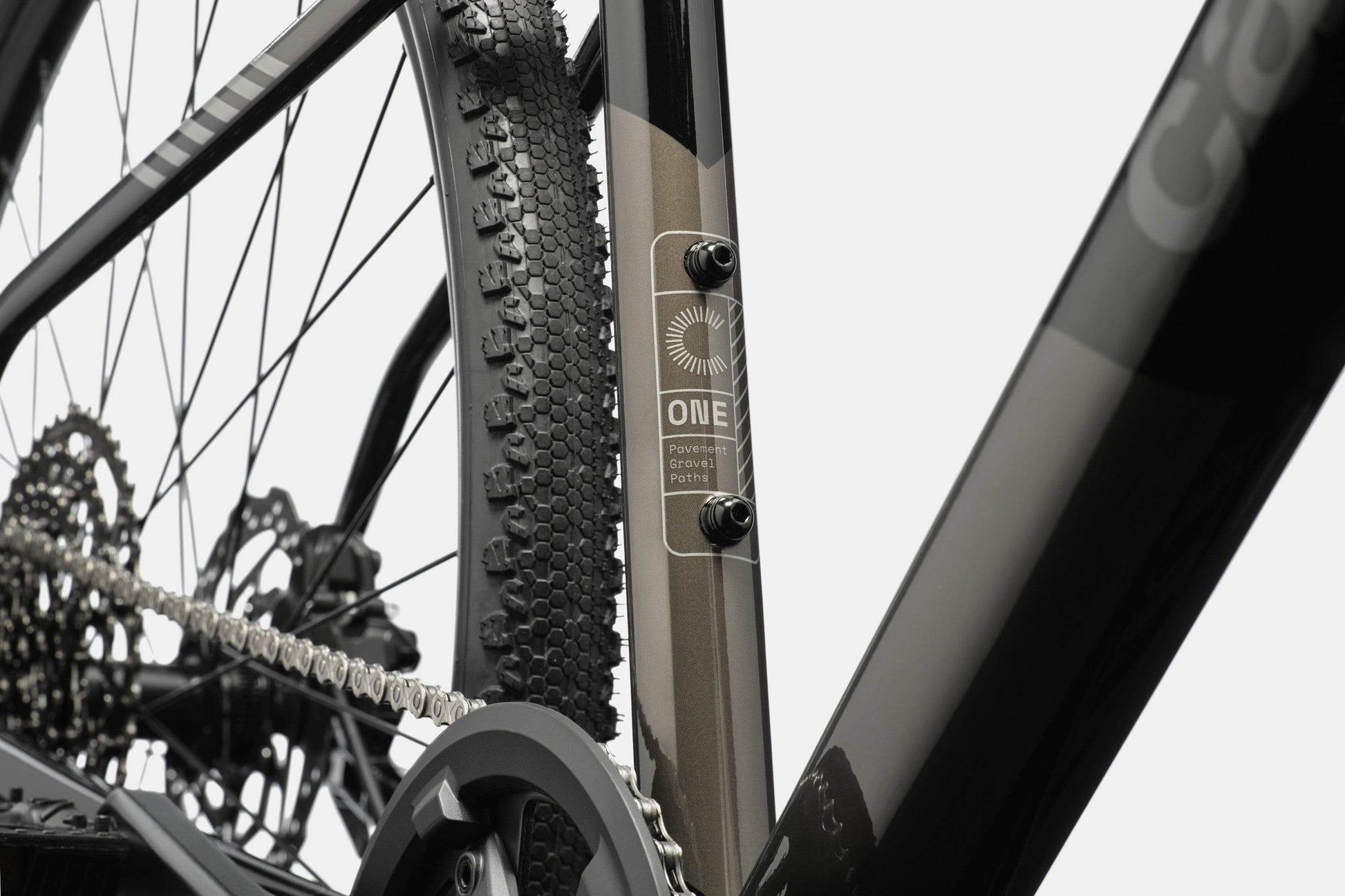

Frame:
Quick CX, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender mounts
Fork:
Suntour NEX-E25, 50mm travel, 1-1/8" to 1-1/2" alloy steerer, coil, hydraulic lockout with remote, custom crown
Headset:
FSA Orbit, Semi-integrated, 1-1/2"-1-1/8"
Drivetrain

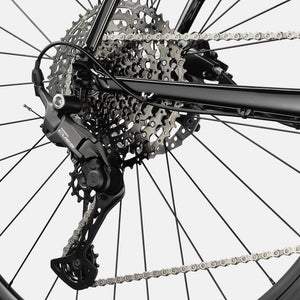

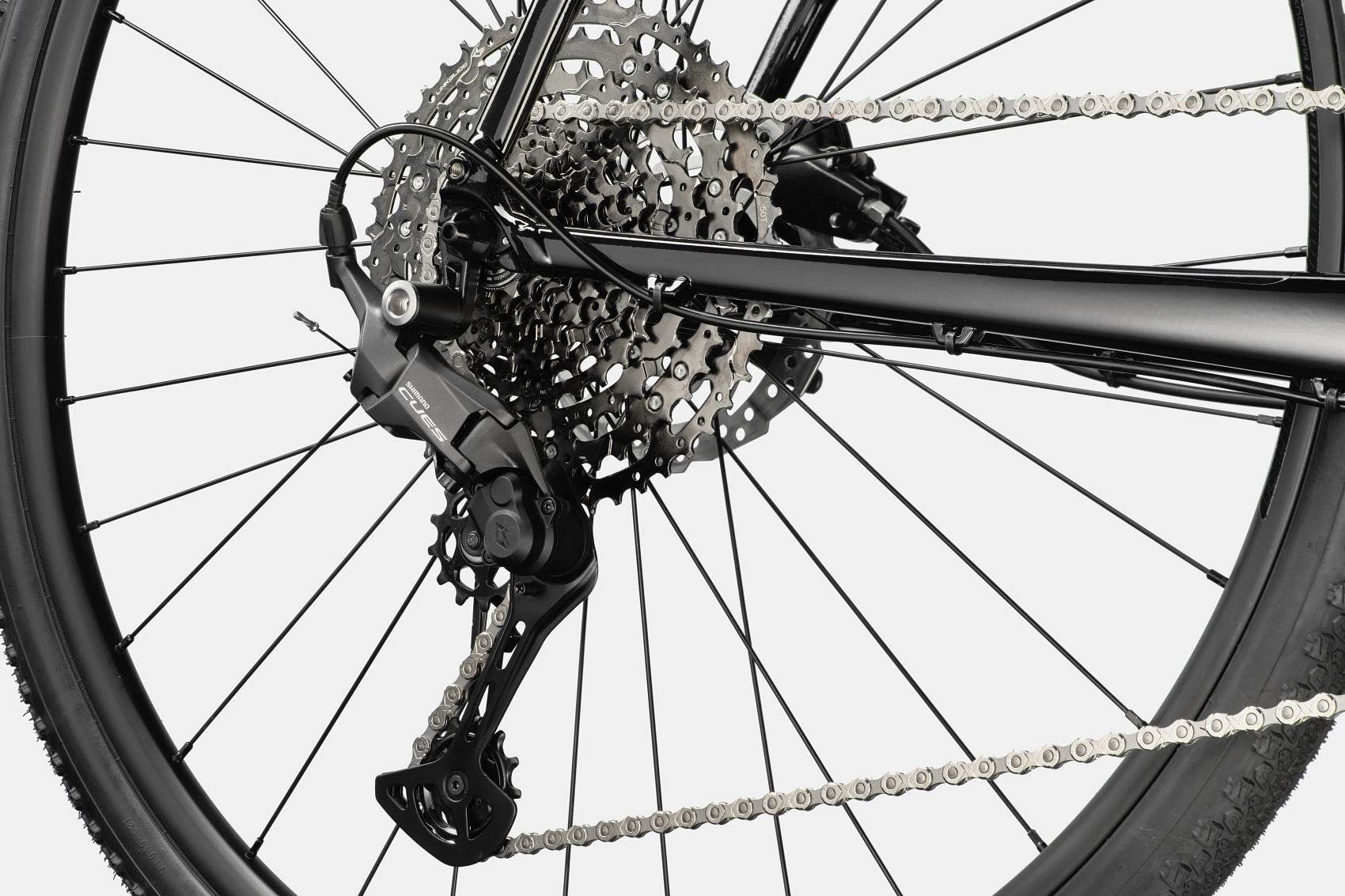

Rear Derailleur:
Shimano CUES U6000, 11-speed
Shifters:
Shimano CUES U6000, 11-speed
Crank:
Shimano CUES 6000, 40T
Chain:
KMC Eglide, 11-speed
Rear Cogs:
Shimano CUES LG400, 11-50, 11-speed
Bottom Bracket:
Shimano MT501
Brakes
Brakes:
Shimano MT200 hydraulic disc, 160/160mm rotors
Wheels
Rims:
DC 4.0, double wall w/eyelet, 32h
Spokes:
Stainless steel, 14g
Hubs:
(F) Shimano QC-300, QR / (R) Shimano QC-300, QR
Front Tire:
Vittoria Terreno Dry, 700x40c, reflective strip
Rear Tire:
Vittoria Terreno Dry, 700x40c, reflective strip
Components

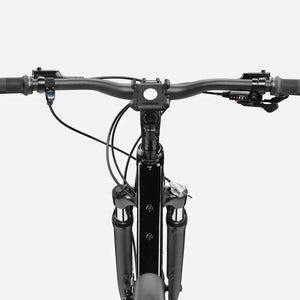

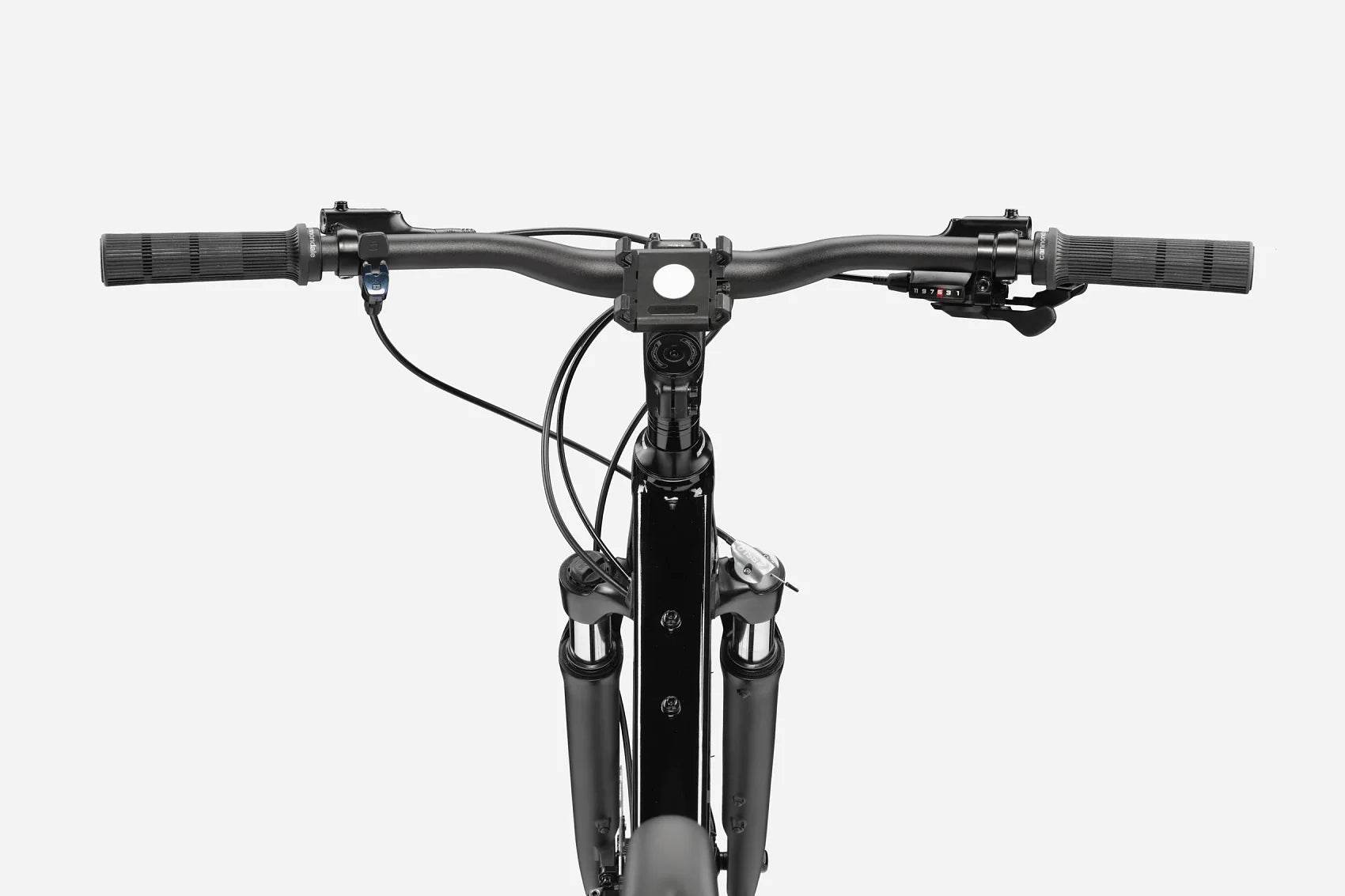

Handlebar:
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 700mm
Stem:
Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, +6°, w/ SP Connect SPC+ Mount and Phone Clamp
Grips:
Cannondale TaperRidge
Saddle:
Cannondale Fitness Ergo Double Density
Seatpost:
6061 Alloy, 27.2x350mm
Specifications subject to change without notice based on component availability.
Size |
Height Range |
XS |
|
SM |
|
MD |
|
LG |
|
XL |
|
Geometry
