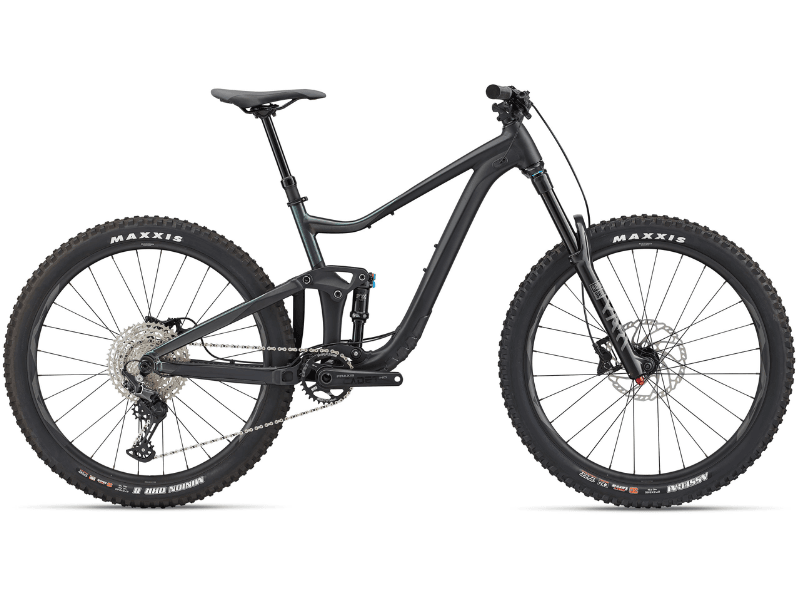

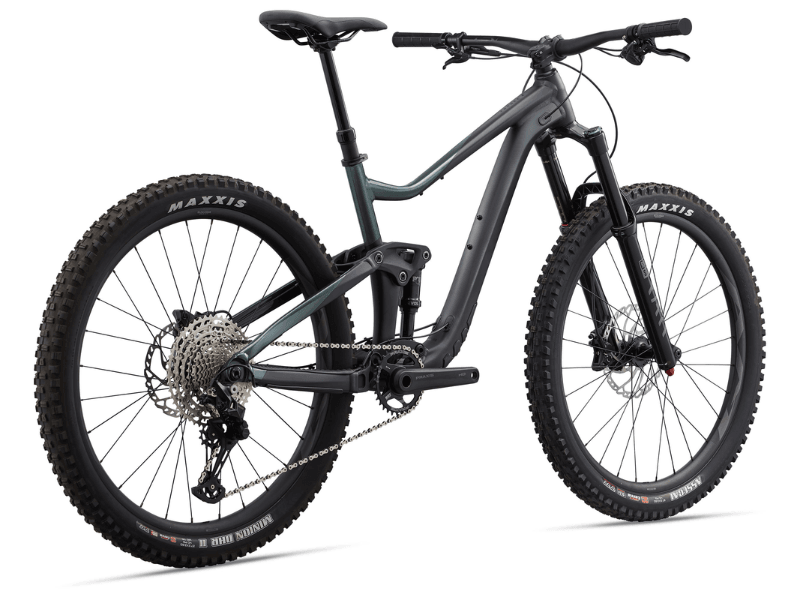

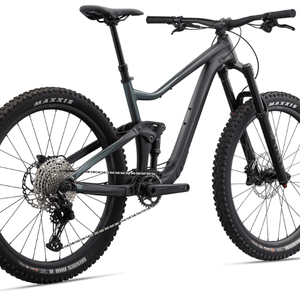

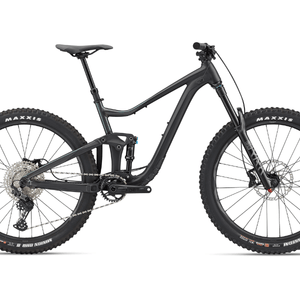

Ready for Technical Trails? The Giant Trance X 3 is built for riders who crave agility, control, and all-out fun on the trail. Its 27.5-inch wheels deliver quick handling, while a flip chip allows you to customize geometry to your ride style. With 145mm of updated Maestro rear suspension and a 160mm fork, this bike is built to float through rock gardens, rail corners, and handle the toughest terrain with confidence and precision.
Frameset
Frame:
ALUXX SL-Grade Aluminum, 145mm Maestro suspension, flip chip, 12x148mm thru-axle
Fork:
RockShox Yari RC, Motion Control, DebonAir, 160mm, 37mm offset, 15x110 Maxle Stealth
Rear Shock:
Fox Float DPS Performance, 185/55, custom tuned
Headset:
Giant Overdrive 1 1/8"–1 1/2" tapered
Drivetrain
Rear Derailleur:
Shimano Deore, 12-speed
Shifters:
Shimano Deore, 1x12
Crank:
Praxis Cadet M24 HD, 32T, 170mm
Cassette:
Shimano Deore, 10x51
Bottom Bracket:
Praxis, press fit
Brakes
Brakes:
Tektro HD M745, hydraulic disc
Wheels
Rims:
Giant AM 27.5, alloy
Hubs:
[F] Giant Tracker Performance Boost 15x110, sealed / [R] Giant Tracker Giant Sport QR141, loose ball
Front Tire:
Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR
Rear Tire:
Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
Components
Handlebar:
Giant Contact TR35, 800x35mm, 20mm rise
Stem:
Giant Contact SL 35, 40mm
Grips:
Giant Tactal Pro Single, 120mm
Seatpost:
Giant Contact Switch dropper, remote, 150mm travel / 30.9 x 440mm
Note: Specifications are subject to change without notice based on component availability.
| Size |
Height Range |
| S |
|
| M |
|
| L |
|
| XL |
|
