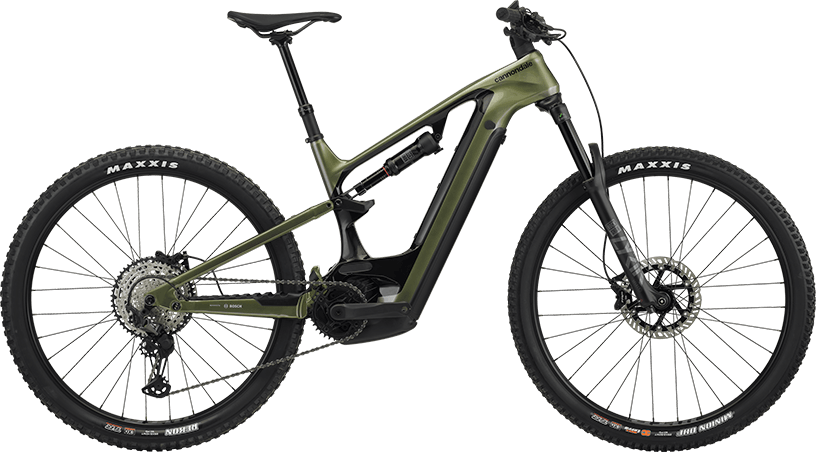

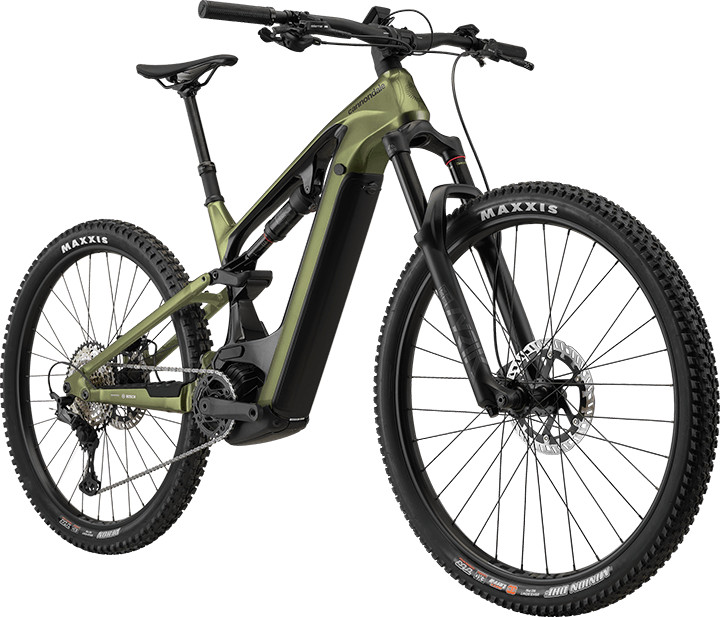

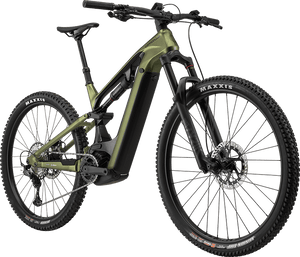

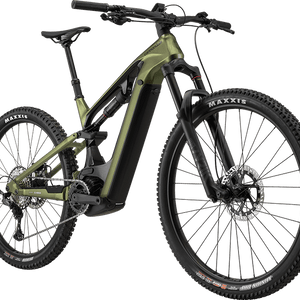

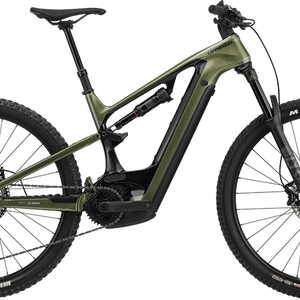

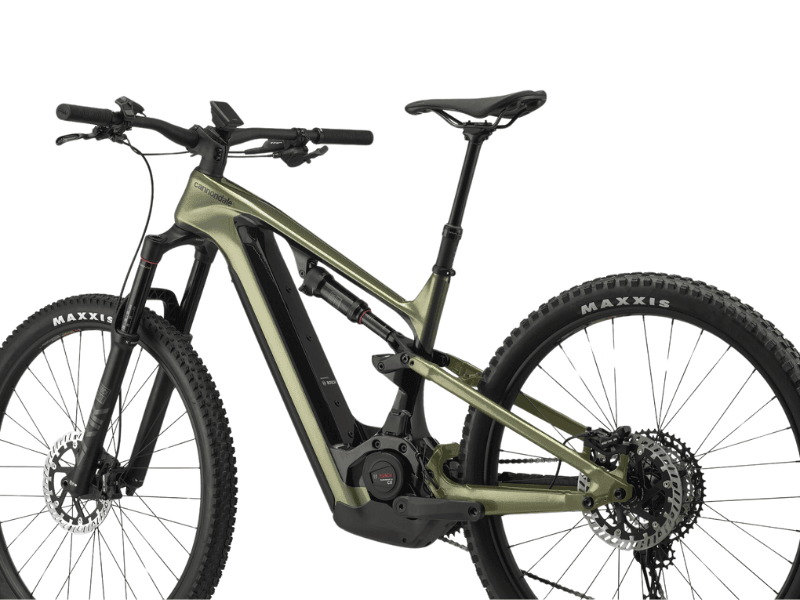

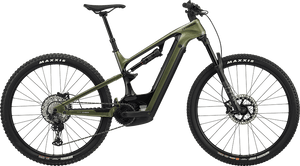

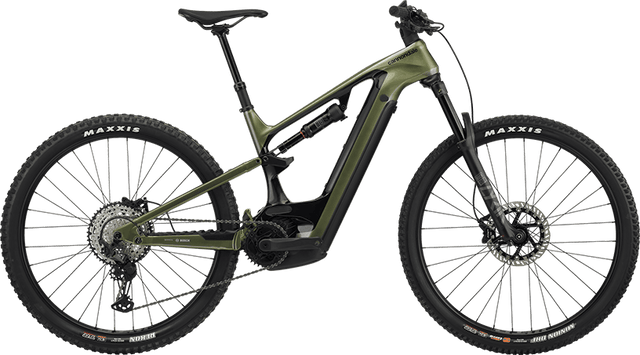

The Cannondale Moterra Carbon 2 full-suspension eMTB is the embodiment of limitless trail capability. Engineered with cutting-edge all-mountain e-bike technology and a carbon front triangle, it thrives on formidable climbs and daring descents alike. With 150mm of responsive suspension, Bosch’s most powerful drive unit, and trail-ready geometry, this bike redefines control and confidence for electric mountain adventures.
Trail Riding Perfection: 150mm of front and rear travel, high-torque Bosch drive system, and trail-focused components make this bike perfect for any mountain trail.
Bosch Power: Powered by the Bosch Performance Line CX motor offering 85Nm of torque and up to 340% pedal assist for intuitive, natural-feeling power.
Ride Easy: Designed for real-world use with easy battery access, rack/fender mounts, water bottle compatibility, and kickstand support on all sizes.
Electronic System
Drive Unit:

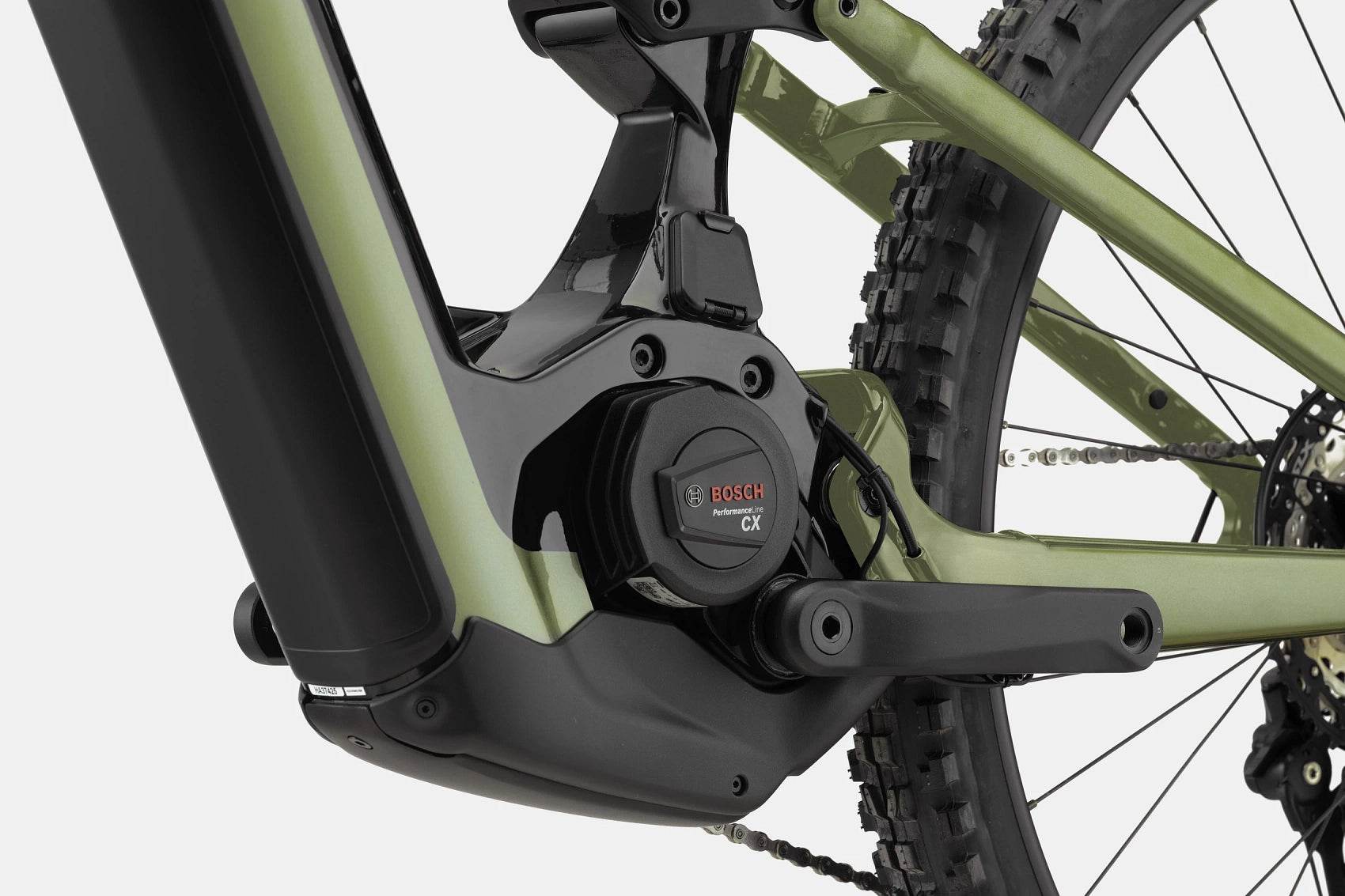

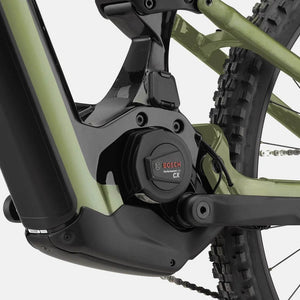

Bosch Performance Line CX, 250W, 85Nm
Battery:
Bosch PowerTube, 750Wh

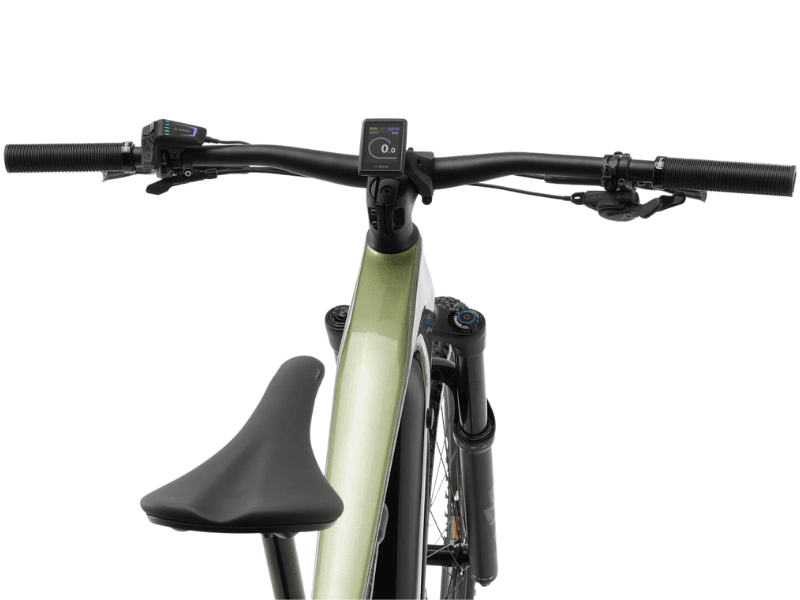

Display:

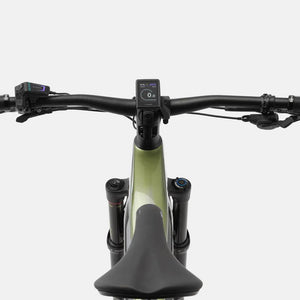

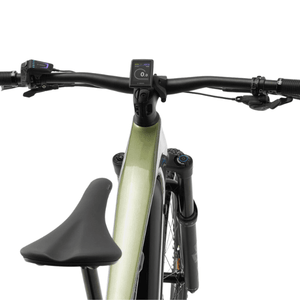

Bosch Kiox 300 w/ LED remote
Frameset
Frame:

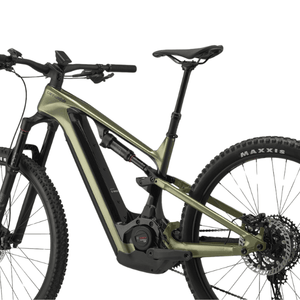

Moterra Carbon Front Triangle w/ SmartForm C1 Alloy Swingarm, 150mm travel
Fork:
RockShox Lyrik Select, 150mm, DebonAir, 15x110mm

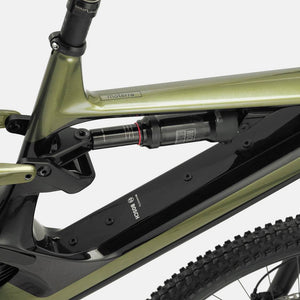

Rear Shock:

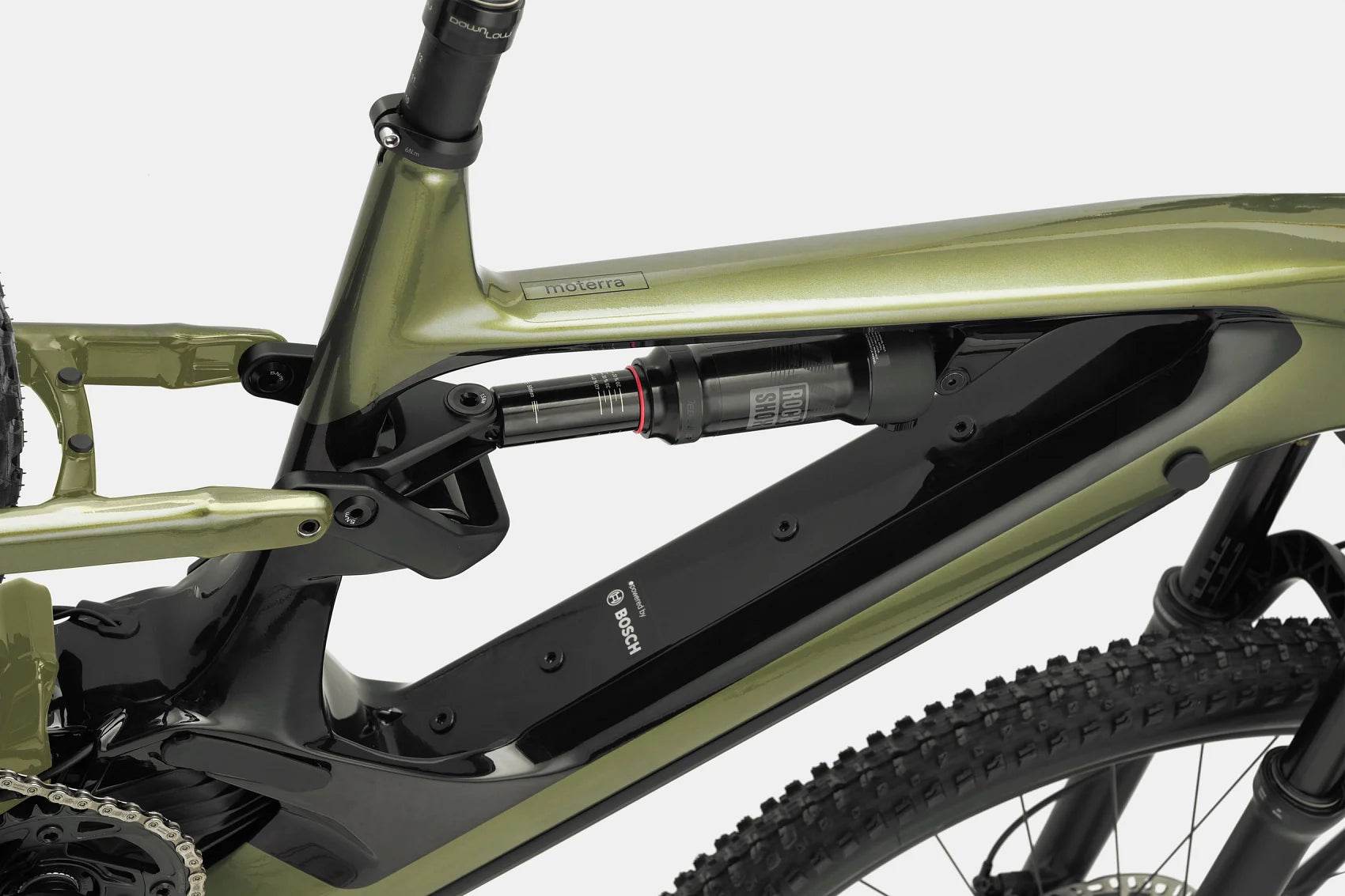

RockShox Deluxe Select+, 150mm
Headset:
Acros Integrated Sealed Bearing
Drivetrain

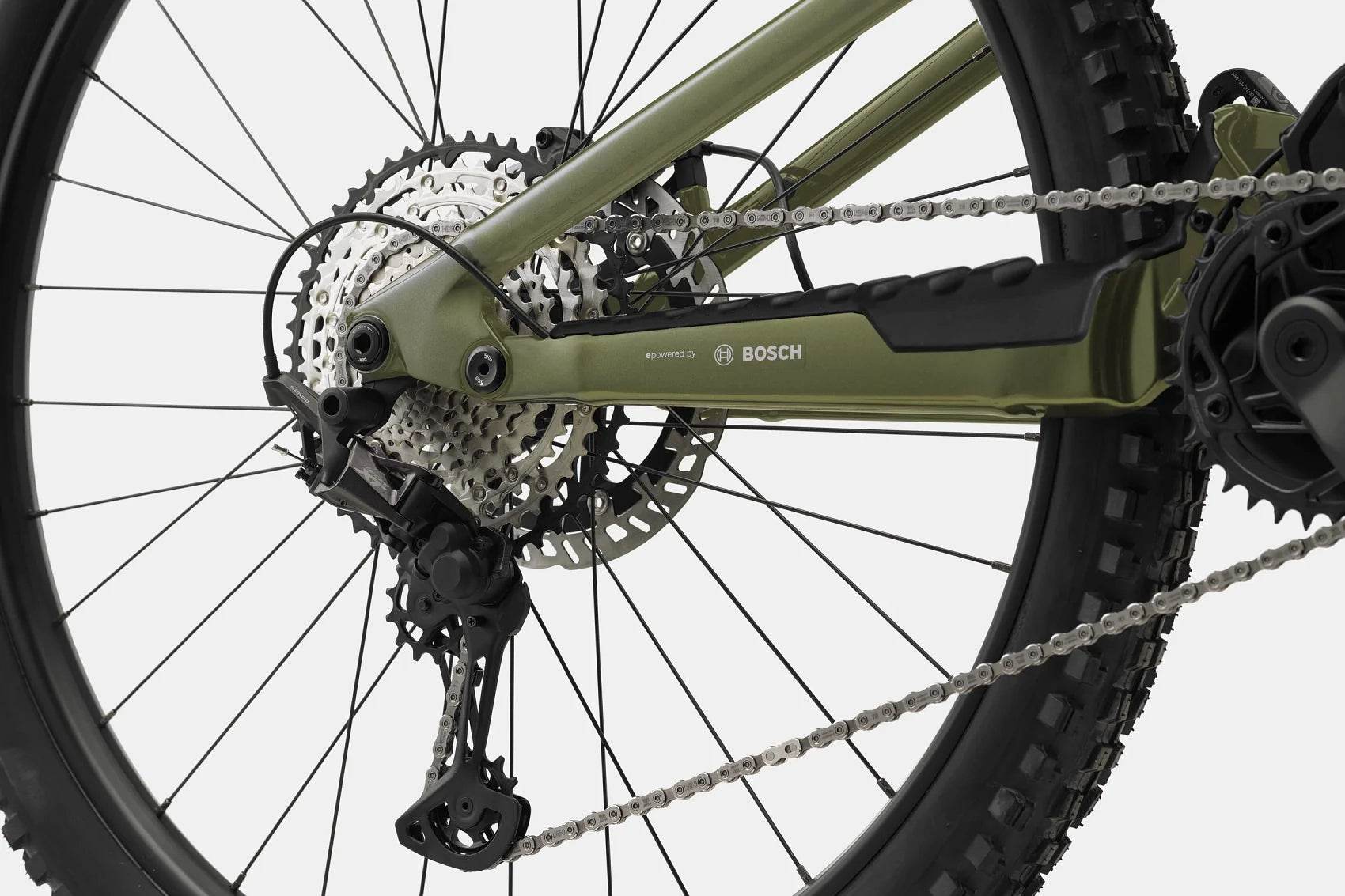

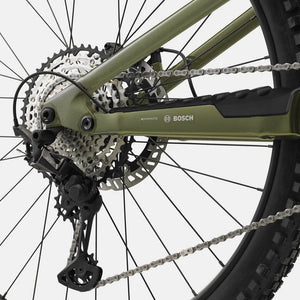

Rear Derailleur:
Shimano XT, 12-speed
Shifters:
Shimano SLX, 12-speed
Crank:
FSA Bosch E-bike, 160mm, 34T
Chain:
Shimano SLX, 12-speed
Rear Cogs:
Shimano SLX, 10-51
Brakes
Brakes:
Shimano MT520 4-piston hydraulic, 203/203mm rotors
Brake Levers:
Shimano MT501
Wheels
Rims:
WTB ST i30 TCS, 32h, tubeless ready
Spokes:
DT Swiss Champion
Hubs:
(F) Formula 15x110mm / (R) Shimano MT410, 12x148mm
Front Tire:
Maxxis Minion DHF 29x2.6", EXO, tubeless
Rear Tire:
Maxxis Rekon 29x2.6", EXO, tubeless
Components

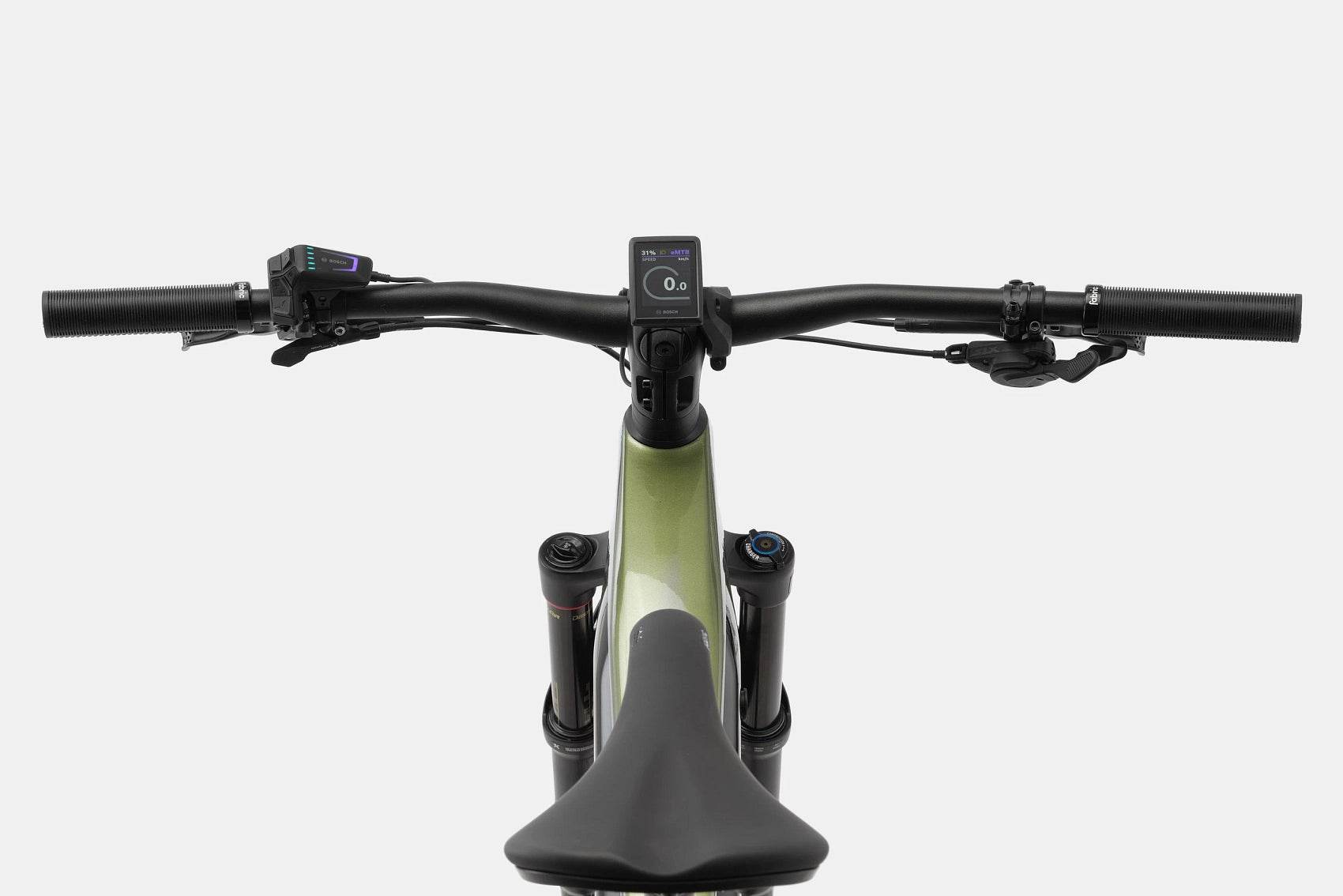

Handlebar:
Cannondale 3 Riser, 800mm
Stem:
Cannondale 2, 35mm, 0°
Saddle:
Fabric Scoop Shallow Sport
Seatpost:
Cannondale DownLow Dropper, 150mm
Specifications subject to change without notice based on component availability.
Size |
Height Range |
SM |
|
MD |
|
LG |
|
