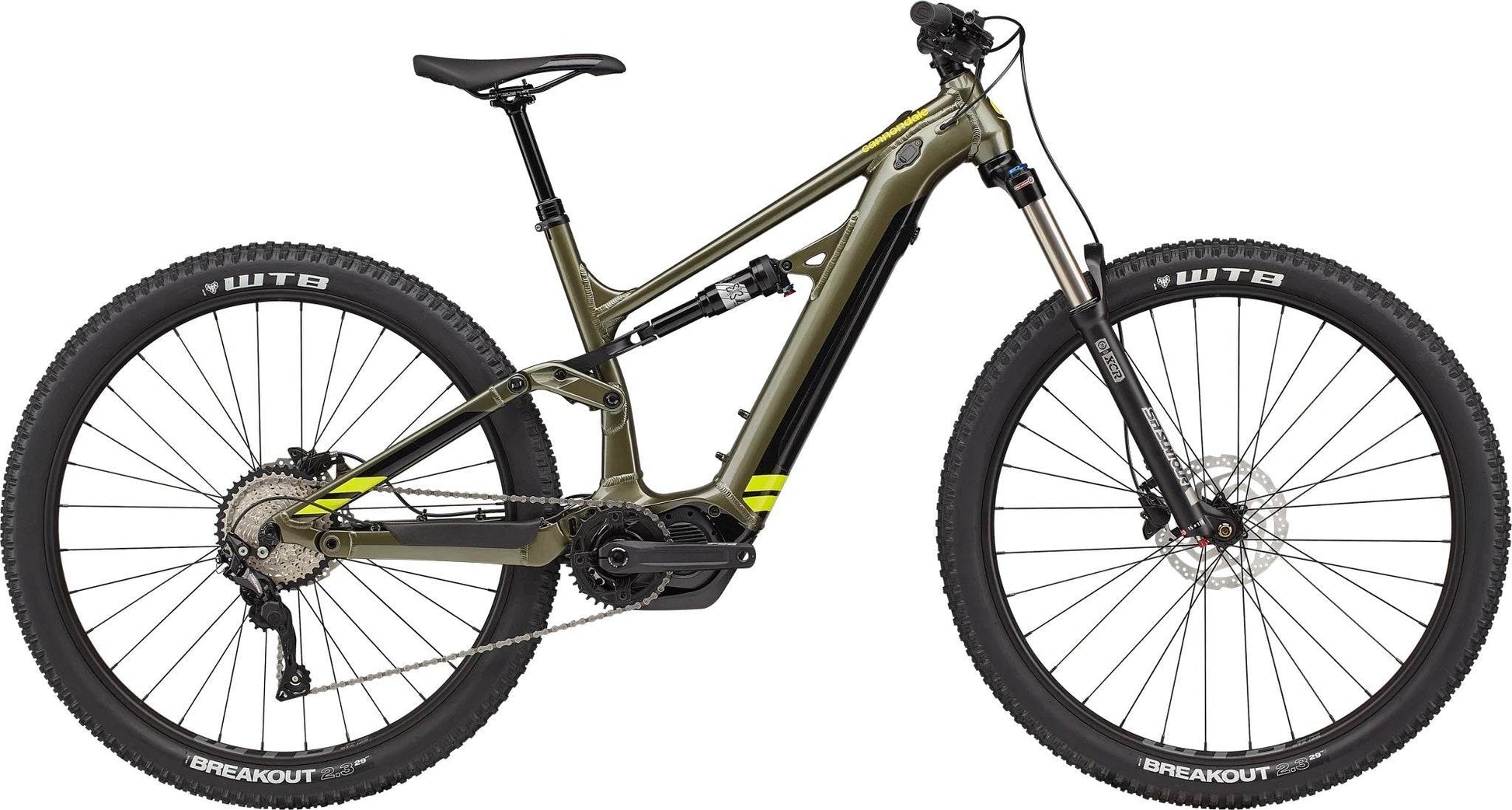

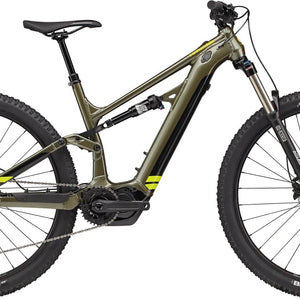

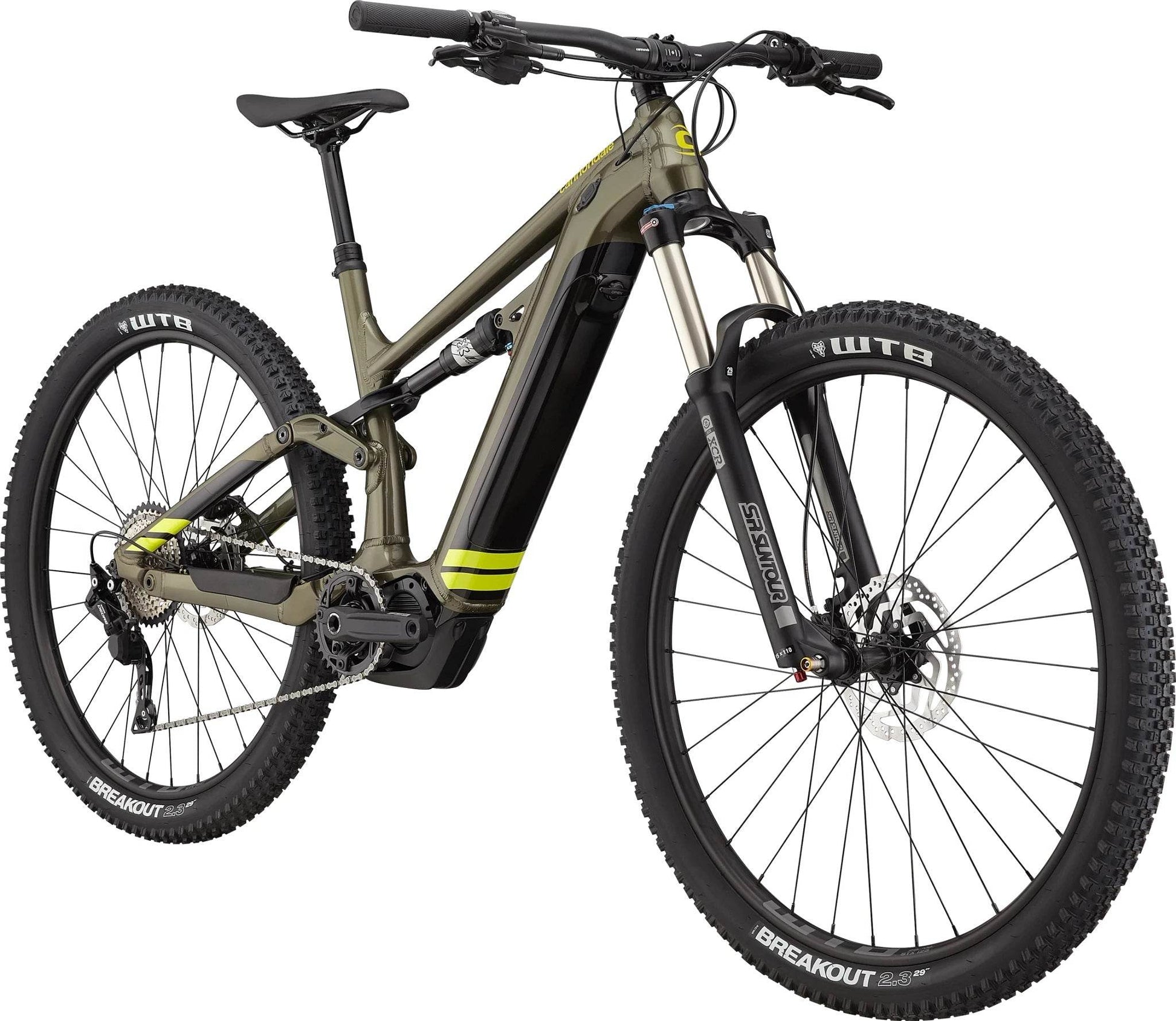

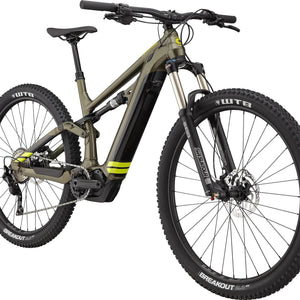

The Cannondale Moterra 5 is an all-mountain eMTB designed to thrive on the toughest climbs and steepest descents. With 150mm of e-optimized suspension, Shimano STEPS power, and a low, centered weight design, this aluminum beast offers responsive, confident handling on rugged terrain. Progressive geometry, intuitive controls, and a range-ready 504Wh battery make it the ultimate tool for electric mountain adventure.
Electronic System
Drive Unit:

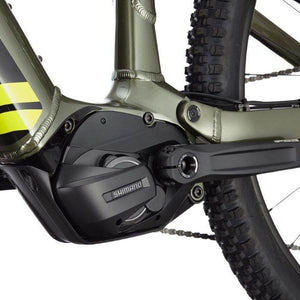

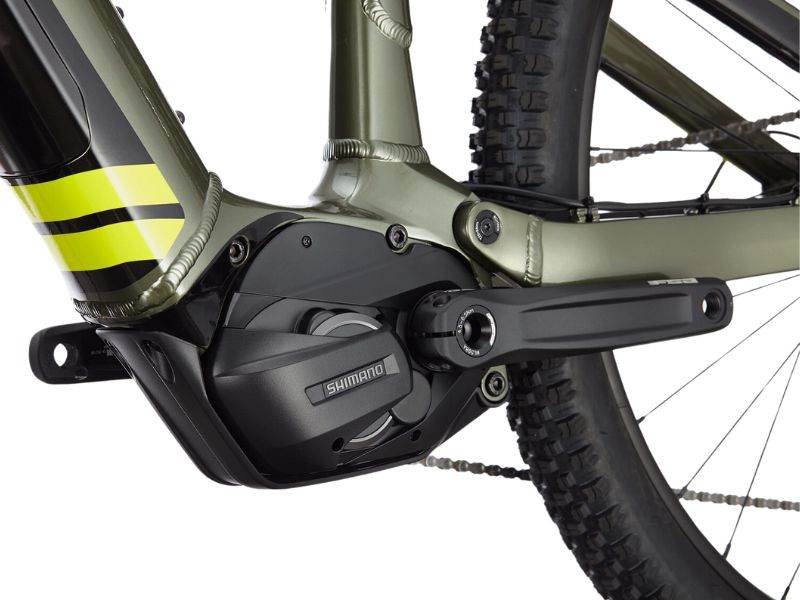

Shimano STEPS DU-E7000, 250W
Battery:
Shimano BT-E8035, 504Wh
Charger:
Shimano Battery Charger 2A
Display:
Shimano SC-E7000, Bluetooth enabled
Frameset
Frame:
SmartForm C2 Alloy, 150mm travel, internal cable routing
Fork:
SR Suntour XCR LO Boost 29, 140mm travel
Rear Shock:
X-Fusion 02 Pro RL, 150mm
Headset:
Integrated Sealed Bearing, Tapered
Drivetrain
Rear Derailleur:
Shimano Deore M6000, 10-speed
Shifters:
Shimano Deore M4100, 10-speed
Crank:
FSA Shimano E-Bike, 165mm, 34T
Chain:
Shimano Deore, 10-speed
Rear Cogs:
Shimano HG500, 11-42
Brakes
Brakes:
Shimano MT200 hydraulic disc, 180/180mm rotors
Brake Levers:
Shimano MT200 hydraulic
Wheels
Rims:
WTB STX i25 TCS, 32h, tubeless ready
Spokes:
Stainless steel, 13g
Hubs:
(F) Shimano MT400, 15x110mm / (R) Shimano MT400, 12x148mm
Front Tire:
WTB Breakout, 29x2.3", Comp Level
Rear Tire:
WTB Breakout, 29x2.3", Comp Level
Components
Handlebar:
Cannondale 3 Riser, 6061 Alloy, 780mm
Stem:
3D Forged 6061 Alloy, 7°
Grips:
Cannondale Locking Grips
Saddle:
Cannondale Ergo XC
Seatpost:
TranzX Dropper, internal, 120mm (M)
Specifications subject to change without notice based on component availability.
| Size |
Height Range |
| SM |
|
| MD |
|
| LG |
|
