Cannondale $7,500.00 $5,600.00 25%

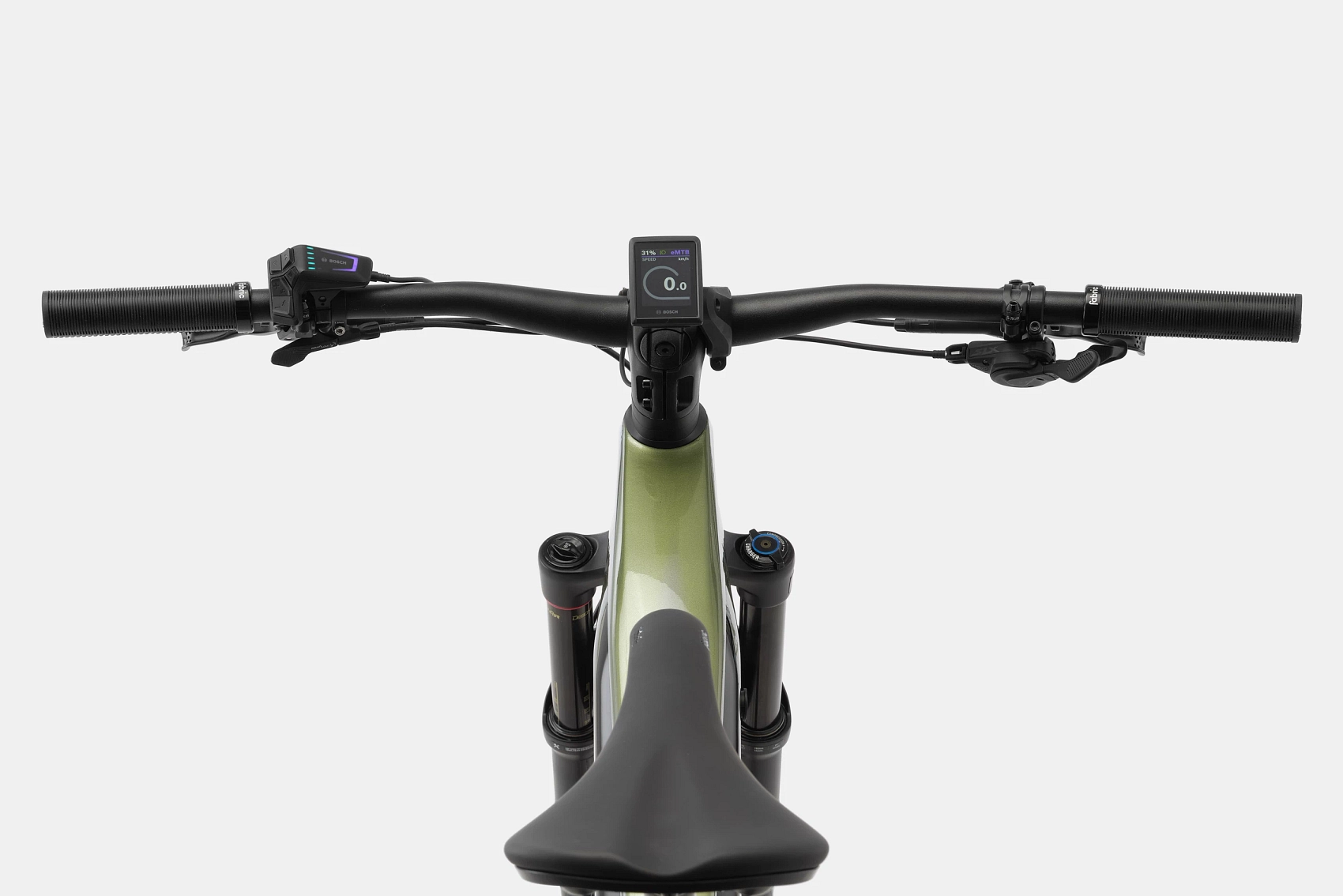

Moterra Carbon 2 Mantis MD
Crafted for ultimate performance, the Moterra Carbon 2 full suspension eMTB is not just an aluminum e-mountain bike; it's an embodiment of limitless capability. Engineered to conquer the most formidable ascents and the most challenging descents, it seamlessly integrates cutting-edge all-mountain e-bike technology. With its strategically positioned center of gravity, progressive design, and compact chainstays, the Moterra Neo sets a new standard for handling prowess. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.
Size: Medium
Recommended Rider Height: 5' 4" - 5' 9"
Features:
Trail Riding Perfection: With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
Bosch Power: Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive- feeling way. This is e-mountain bike power at its best.
Ride Easy: Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes.
Specs:
Electronic System
Drive Unit: Bosch Performance Line CX 250W
Battery: Bosch PowerTube, 750Wh
Charger: Bosch 4A
Display: Bosch Kiox 300 w/ LED remote
Certifications: UL 2849
Frameset
Frame: Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound, 150mm
Headset: Acros integrated sealed bearing, tapered
Drivetrain
Rear Derailleur: Shimano XT, 12-speed
Shifters: Shimano SLX, 12-speed
Chain: Shimano SLX, 12-speed
Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs: Shimano SLX, 10-51, 12-speed
Brakes
Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers: Shimano MT501 hydraulic disc
Wheels
Rims: WTB ST i30 TCS, 32h, tubeless ready
Spokes: DT Swiss Champion
Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Front Tire: Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire: Maxxis Rekon, 29x2.6", EXO, tubeless ready
Components
Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
Grips: Fabric FunGuy
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm
Note: Specifications are subject to change without notice based on component availability.
Geometry
Size: Medium
Recommended Rider Height: 5' 4" - 5' 9"
Features:
Trail Riding Perfection: With 150mm of travel front and rear, tons of power and incredibly capable components, this rig is at home on any trail, anywhere.
Bosch Power: Bosch's most powerful eMTB drive unit, the Performance Line CX, delivers an unreal riding experience. With 85Nm of available torque, it can boost your output by up to 340% in a completely natural, intuitive- feeling way. This is e-mountain bike power at its best.
Ride Easy: Life is hard enough, so we made it easier. Simple battery removal, rack and fender mounts, kickstand compatibility, and room for a water bottle on all sizes.
Specs:
Electronic System
Drive Unit: Bosch Performance Line CX 250W
Battery: Bosch PowerTube, 750Wh
Charger: Bosch 4A
Display: Bosch Kiox 300 w/ LED remote
Certifications: UL 2849
Frameset
Frame: Moterra Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork: RockShox Lyrik Select, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset
Rear Shock: RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound, 150mm
Headset: Acros integrated sealed bearing, tapered
Drivetrain
Rear Derailleur: Shimano XT, 12-speed
Shifters: Shimano SLX, 12-speed
Chain: Shimano SLX, 12-speed
Crank: FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Rear Cogs: Shimano SLX, 10-51, 12-speed
Brakes
Brakes: Shimano MT520 4-piston hydraulic disc, 203/203mm RT64 rotors
Brake Levers: Shimano MT501 hydraulic disc
Wheels
Rims: WTB ST i30 TCS, 32h, tubeless ready
Spokes: DT Swiss Champion
Hubs: (F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Front Tire: Maxxis Minion DHF, 29x2.6", EXO, tubeless ready
Rear Tire: Maxxis Rekon, 29x2.6", EXO, tubeless ready
Components
Handlebar: Cannondale 3 Riser, 6061 Alloy, 25mm rise, 8° sweep, 5° rise, 800mm
Stem: Cannondale 2, 6061 Alloy, 35mm, 0°
Grips: Fabric FunGuy
Saddle: Fabric Scoop Shallow Sport, steel rails
Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm
Note: Specifications are subject to change without notice based on component availability.
